Clamp Meters
Professional Clamp Meter Solutions
Power & Energy

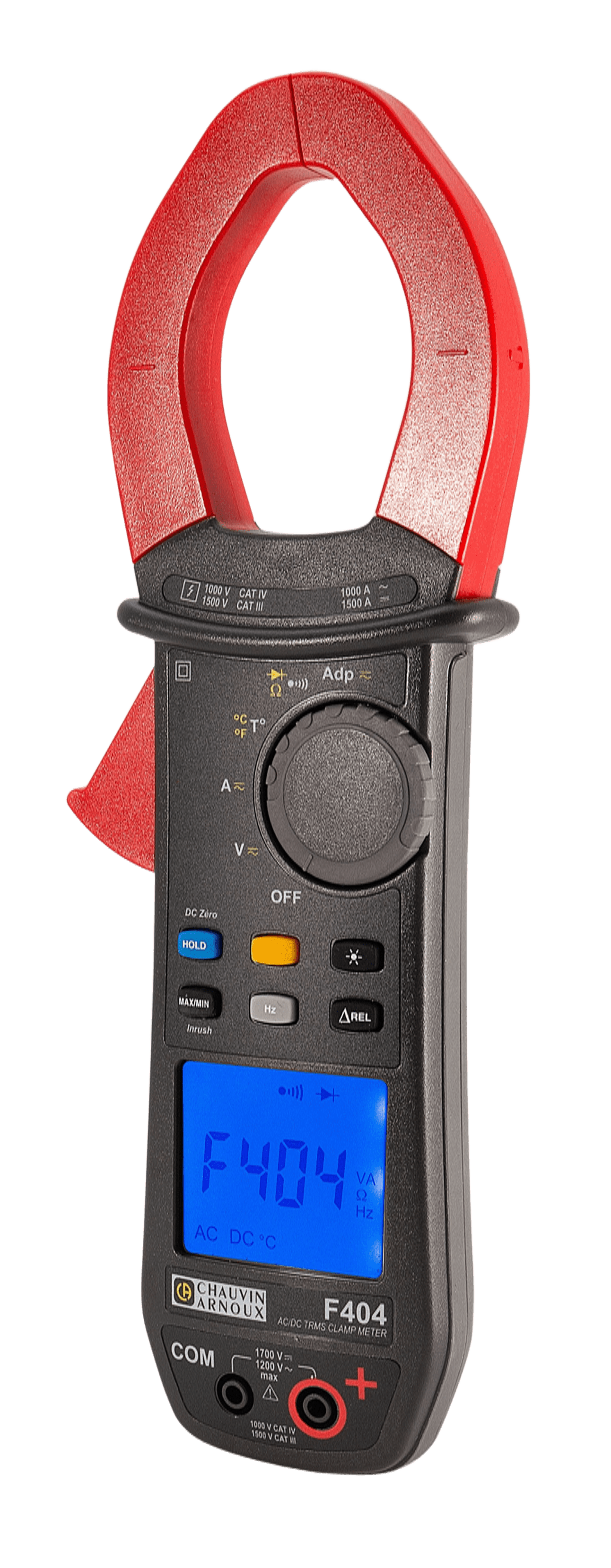

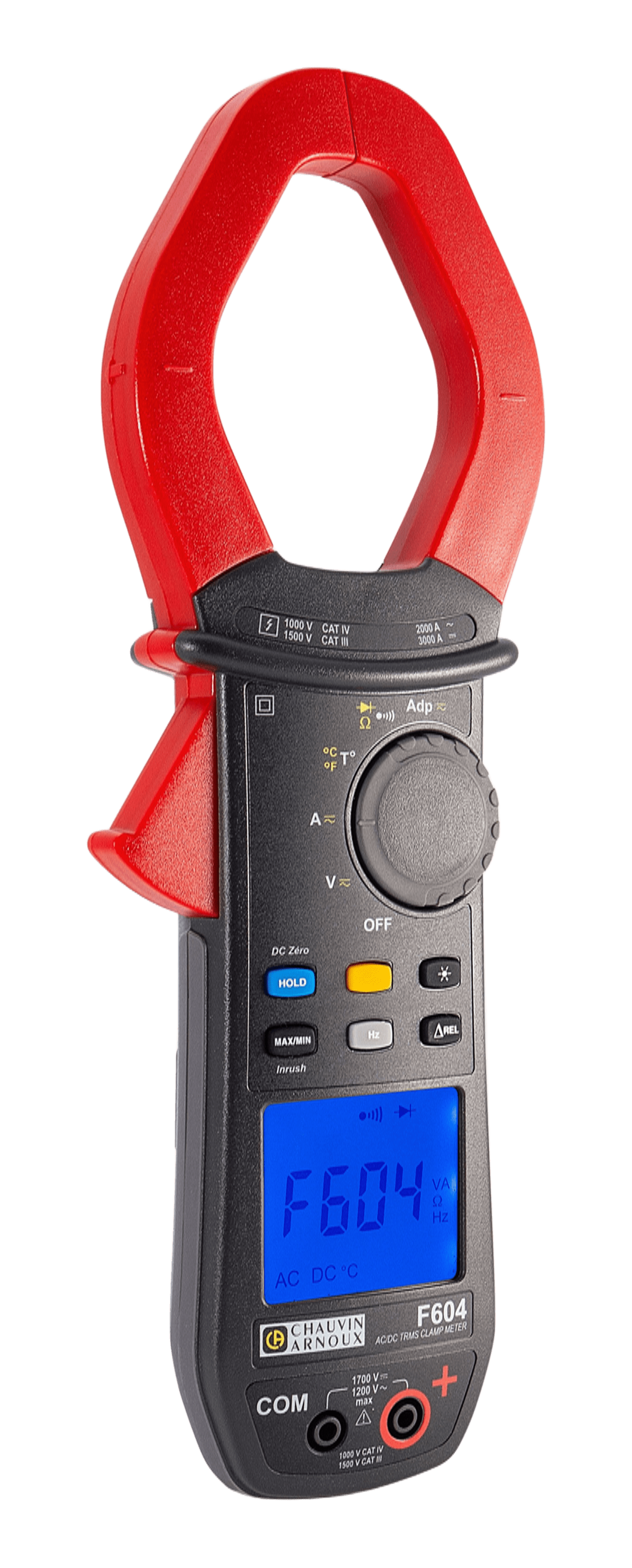

F205/F404/F604
Power Clamp Meter
The Power Clamp Meter series offers professional-grade, true RMS measurement for both AC and DC, with advanced power analysis and robust safety features for industrial and commercial use.
Voltage Range
Up to 1,200V AC/1,700V DC
Accuracy
1% + 3 counts
Key Features
True RMS reading on AC and AC+DC
AC and DC voltage up to 1,000 V
Current: up to 2,000 A AC / 3,000 A DC
Measures kW, kVAr, kVA & PF
Auto range, Hold & Auto power off
IP 40 (F205), IP 54 (F404 & F604)
Applications
Electrical installation testing
Industrial maintenance
Power quality analysis
Panel diagnostics
Energy audits
Motor testing and diagnostics
Technical Specifications
Clamping diameter:48 mm
Current:1,000 A AC / 1,500 A DC
Voltage:Up to 1,200 VAC / 1,700 VDC
Resistance and continuity:Resistance and audible continuity
Temperature:Temperature measurement
AC/DC detection:Automatic AC/DC detection
TrueInrush:TrueInrush current measurement
Hold_Min_Max:Hold, Min, MAX
Measurements:Relative (ΔX) and differential (ΔX/X) measurements
Adapter function:Adapter function
Safety rating:CAT IV 1,000 V / CAT III 1,500 V
Protection:IP54 protection rating
