Power & Harmonics

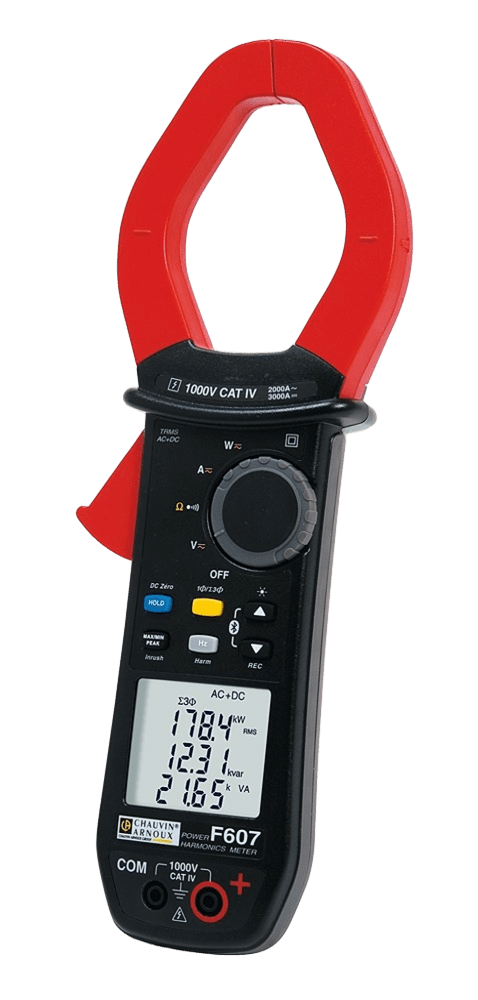

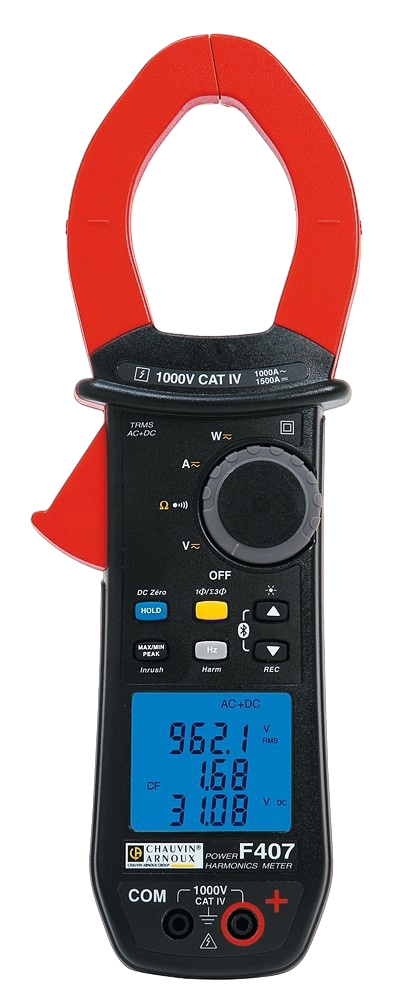

F407/F607
Power & Harmonics Clamp Meter
The Power & Harmonics Clamp Meter series provides advanced harmonic analysis, Bluetooth communication, and data logging for in-depth power quality troubleshooting.
Voltage Range
Up to 1,000V
Accuracy
1% + 3 counts
Key Features
True RMS reading on AC and AC+DC
Harmonics up to 25th order
Bluetooth Communication
Data recording & PC interface
Measures kW, kVAr, kVA, PF & DPF
Auto range, Hold & Auto power off
Applications
Power quality analysis
Industrial equipment monitoring
Harmonic troubleshooting
Data logging and analysis
Panel diagnostics
Motor drive testing
UPS system analysis
Technical Specifications
Current:1,000 AAC / 1,500 ADC
Voltage:AC and DC voltage up to 1,000 V
Power values:W / VA / var, PF & DPF
Harmonic Distortion:Yes
Harmonics:Up to 25th order
Resistance and continuity:Resistance and audible continuity
Analysis:Analysis of Min, Max and Peak± on all functions
TrueInrush current measurement:Yes
Data recording:Yes
Communication:Bluetooth interface and PC software
