100,000 count color display

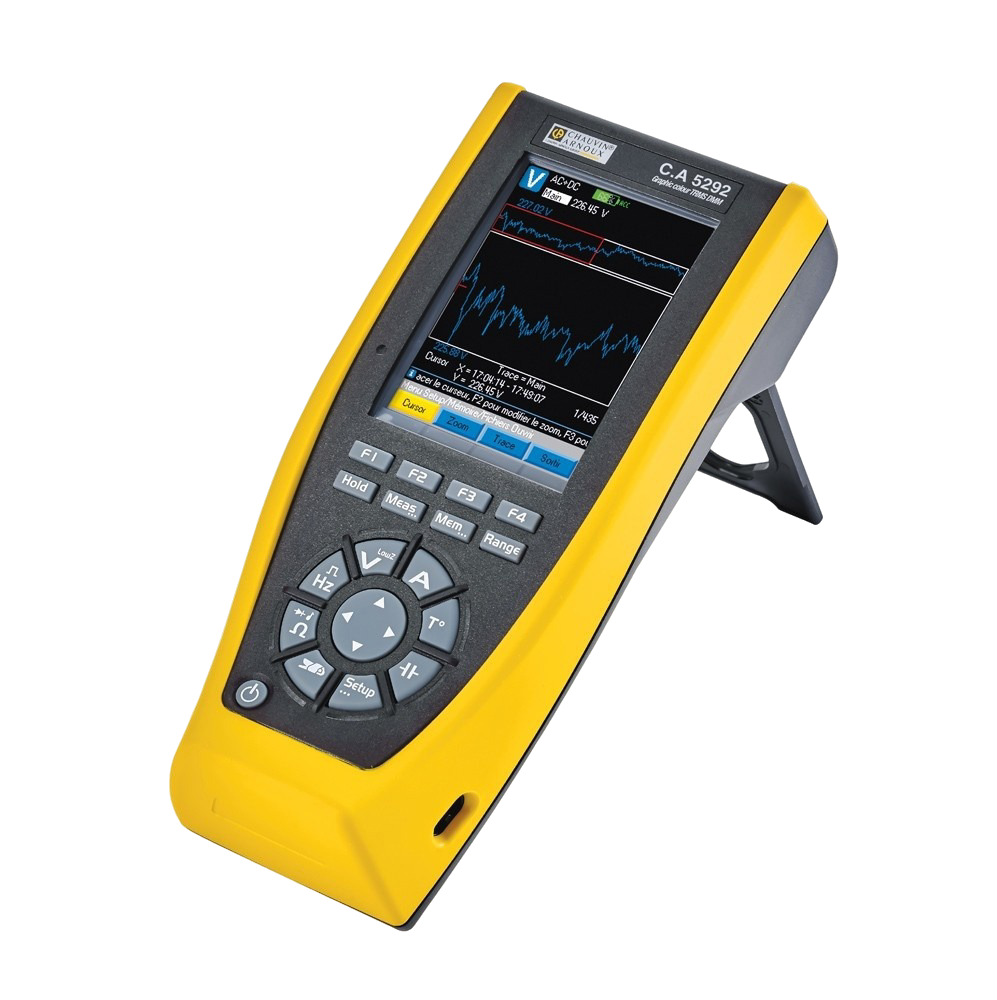

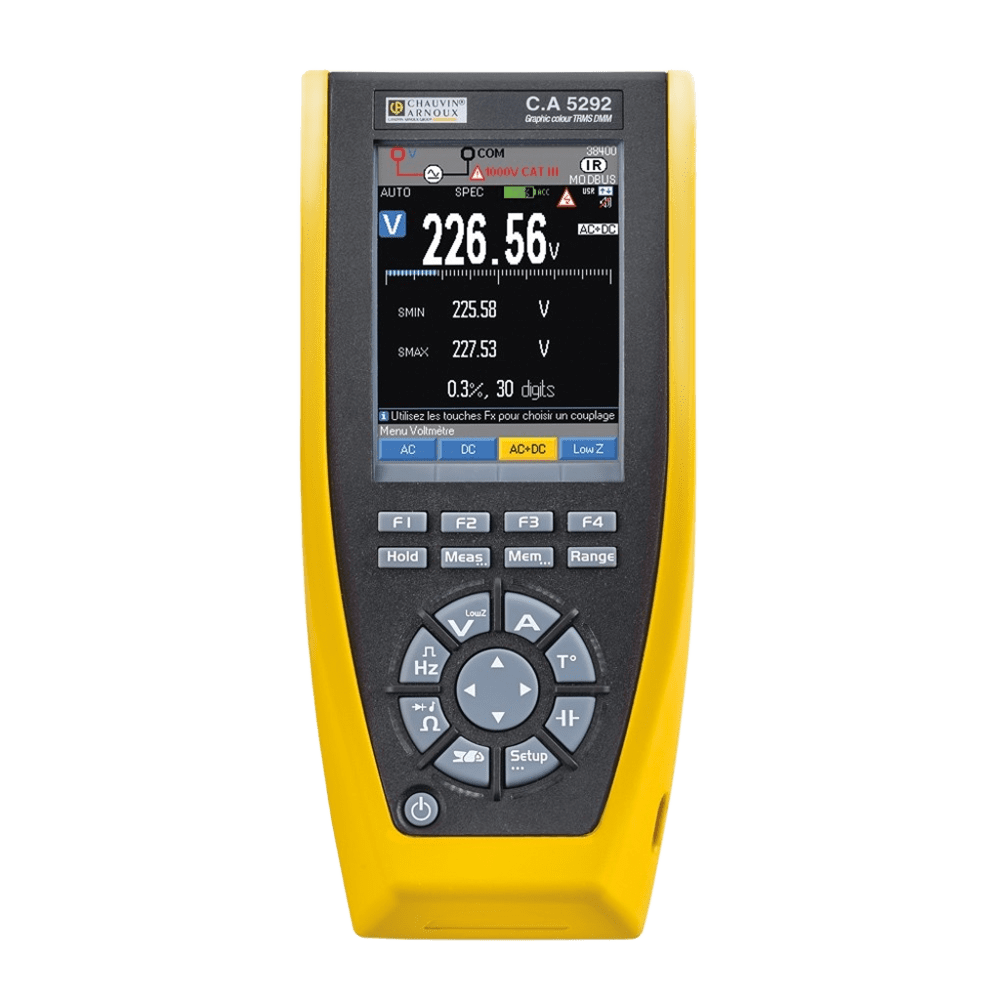

CA 5292
Professional Digital Multimeter
The CA 5292 delivers industry-leading performance with color graphical display, trend analysis, and comprehensive data logging for the most demanding professional applications.
Voltage Range
1000V AC/DC/AC+DC
Accuracy
±0.03% (VDC)
Key Features
4 x 100,000 count colour graphical display with backlighting
TRMS value measurement
Audible continuity detection (1000 Ω/SIGNAL < 20 Ω < 3.5 V) & Diode test
Display of trends, multiple parameters & 600 Hz waveform
HOLD/Auto-HOLD functions
Memory: 10,000 measurements
Applications
Premium electrical testing
Research and development
High-precision measurements
Data logging and analysis
Professional electrical work
Quality control testing
Technical Specifications
Type:TRMS AC/DC/AC+DC recorder-multimeter
Display:100,000-count colour graphical LCD (70 × 52 mm), backlit
Voltage:100 mV to 1000 V DC/AC/AC+DC, resolution 1 µV, accuracy DC ±0.03%, AC ±0.3%, bandwidth 100 kHz
LowZ mode:AC & AC+DC measurements with low-pass filter
Current:1 µA to 10 A (20 A for 30 s), resolution 10 nA, accuracy DC ±0.08%,AC ±0.3%, bandwidth 50 kHz
Current Accuracy:0.08% (DC) & 0.3% (AC/AC+DC)
Resistance:100 Ω to 100 MΩ, accuracy ±0.07%
Continuity / Diode:Audible continuity <20 Ω / Diode & LED test up to 2.6 V
Capacitance:1 nF to 10 mF, resolution 1 pF
Frequency:10 Hz to 5 MHz, resolution 0.0001 Hz
Duty cycle / Pulse width / Counter:Yes
Temperature:–200 °C to +800 °C (Pt100/1000), –40 °C to +1200 °C (K thermocouple)
Functions:Min/Max/Avg (time/date stamped), Peak+, Peak–, Crest Factor,Relative mode, SPEC tolerance display, Math function (Ax+B), 300 Hz low-pass filter (PWM drives), waveform display up to 600 Hz
Recording:Up to 10,000 measurements, 30 sequences, file manager with time/date
Communication:Optical USB (standard), Bluetooth (optional), SX-DMM software, Android app
Power supply:4 × AA batteries or NiMH rechargeable, USB charging, operation while charging
Battery life:Up to 100 h
Safety:IEC 61010-1 / -2-033, 1000 V CAT III / 600 V CAT IV
Protection:IP54 (dustproof, watertight)
Dimensions / Weight:196 × 90 × 47 mm / 570 g
