Digital Multimeters
Professional Electrical Measurement Solutions
6,000 counts LCD

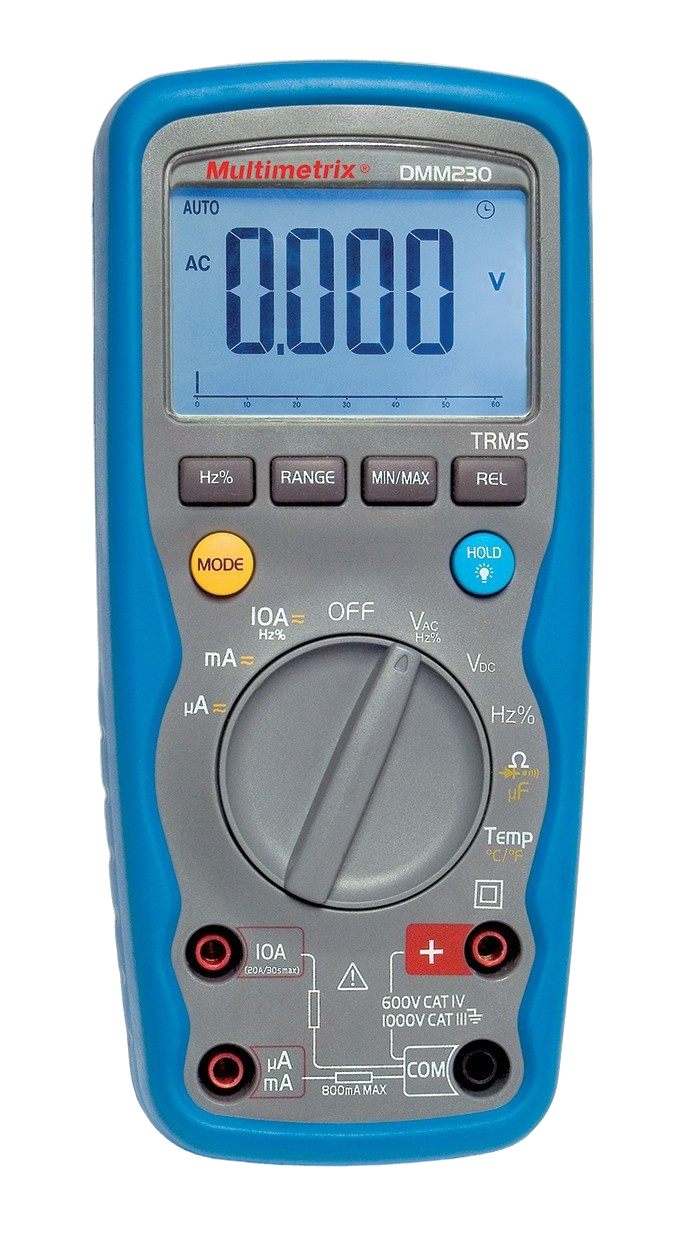

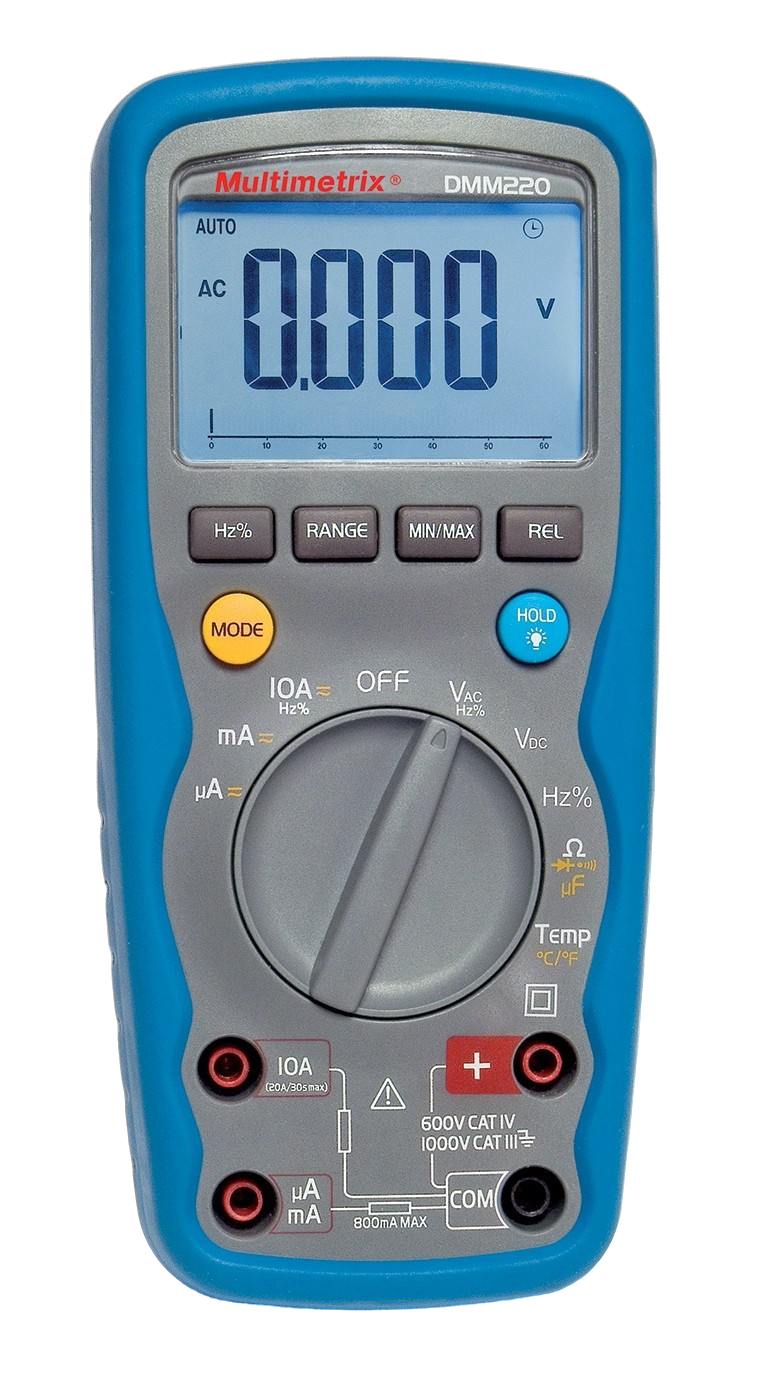

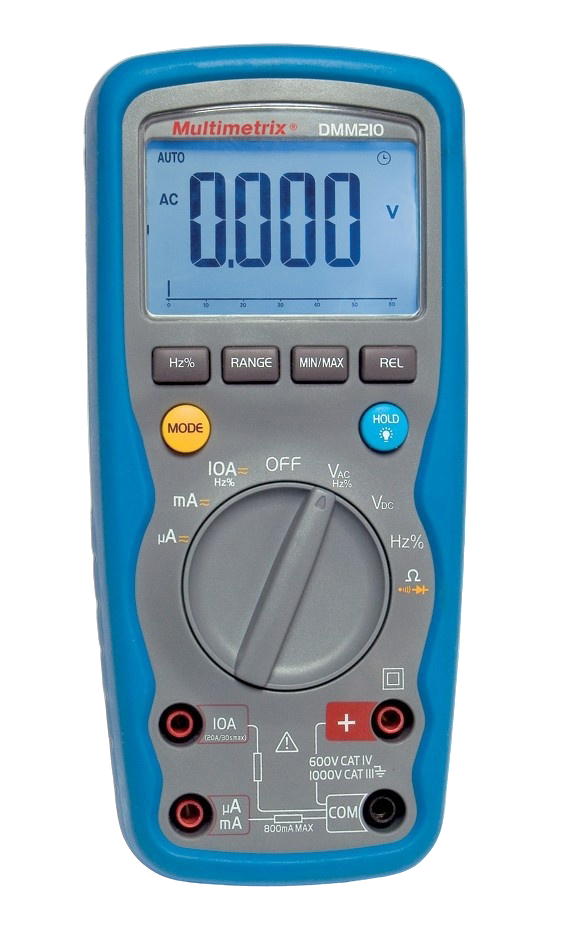

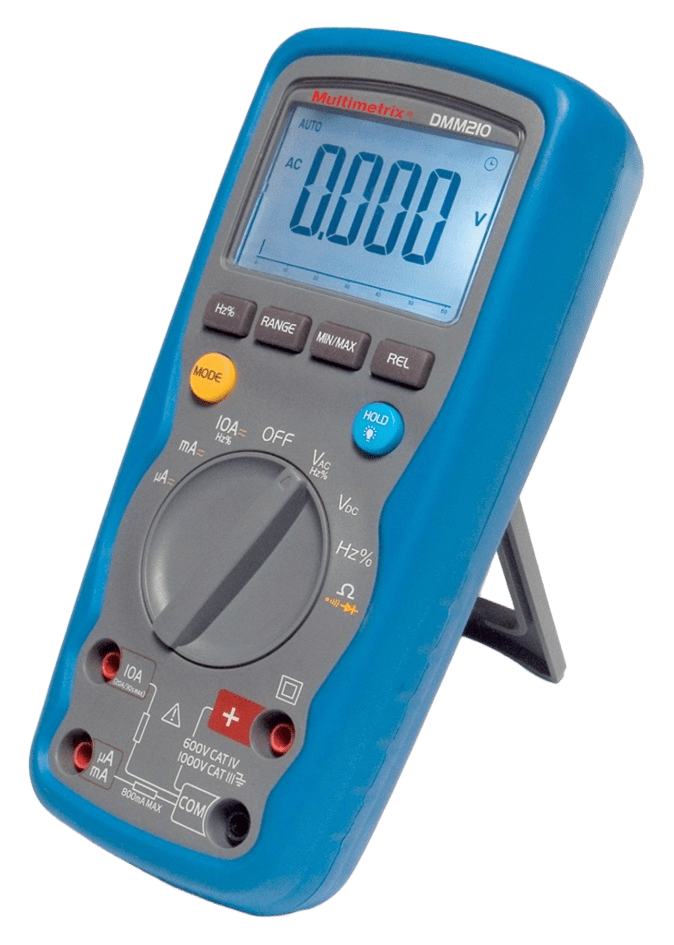

DMM 210/220/230
Standard Digital Multimeter
The DMM 210/220/230 provides reliable electrical measurements with enhanced features including bargraph display and autorange functionality for professional electrical testing applications.
Voltage Range
1000V AC/DC
Accuracy
±0.5%
Key Features
Display: 6,000 counts backlit with bargraph
Measurement Type: Average
Calibre Selection: Autorange/Manual
Audible continuity & Diode test
Automatic shutdown (deactivatable)
Relative mode – MIN, MAX
Applications
Professional electrical testing
Industrial maintenance
Electrical installation verification
Power system diagnostics
Equipment troubleshooting
Quality control testing
Technical Specifications
Display:DMM 210: 6,000 counts, backlit, bargraph,DMM 220/230: 40,000 counts, backlit, bargraph
Measurement type:DMM 210: Average, DMM 220/230: TRMS
Bandwidth:DMM 210: 40 Hz – 1 kHz,DMM 220/230: 50 Hz – 1 kHz
DC Current:DMM 210: 600 µA → 10 A (best res. 0.1 µA, accuracy 1.0%+3c),DMM 220/230: 400 µA → 10 A (20 A max., best res. 0.01 µA,accuracy 1.0%+3c)4–20 mA scaling: only on 230 (–25% to +125%)
AC Current:DMM 210: 600 µA → 10 A (20 A max., best res. 0.1 µA, acc.1.5%+3c),DMM 220/230: 400 µA → 10 A (20 A max., best res. 0.1 µA, acc.1.5%+3c)
DC Voltage:DMM 210: 600 mV → 1000 V, res. 0.1 mV, accuracy 0.09%+2c,DMM 220/230: 400 mV → 1000 V, res. 0.01 mV, accuracy 0.06%+2c
AC Voltage:DMM 210: 6 V → 1000 V, res. 1 mV, accuracy 1.0%+3c,DMM 220/230: 400 mV → 1000 V, res. 0.1 mV, accuracy 1.0%+3c
Resistance:DMM 210: 600 Ω → 60 MΩ, res. 0.1 Ω,DMM 220/230: 400 Ω → 40 MΩ, res. 0.01 Ω,Accuracy: 0.3%+4c
Continuity:Audible, <0.1 Ω
Diode test:Yes
Capacitance:DMM 220: 0.01 nF → 1000 µF,DMM 230: 0.001 nF → 40 mF
Temperature (K thermocouple):DMM 220: –45 °C → +750 °C,DMM 230: –50 °C → +1000 °C
Frequency:DMM 210: Electrical 10 → 400 Hz, Electronic 0.001 Hz → 10 MHz,DMM 220/230: Electrical 40 → 400 Hz, Electronic 0.001 Hz → 100 MHz
Duty cycle:0.1% → 99.9% (230: 0.1% → 99.90%)
Features:Autorange/manual, auto shutdown (disable option), relative mode,MIN/MAX (PEAK 1 ms on 230)
Protection:IP67, shockproof sheath, 600 V CAT IV / 1000 V CAT III (IEC61010-1, -2-033)
Power:9 V battery
Dimensions / Weight:187 × 81 × 50 mm / ~342 g
Accessories:DMM 210: Test leads,DMM 220/230: Test leads + K-type temperature probe
