10,000 counts LCD
F65
RMS Leakage Current Clamp

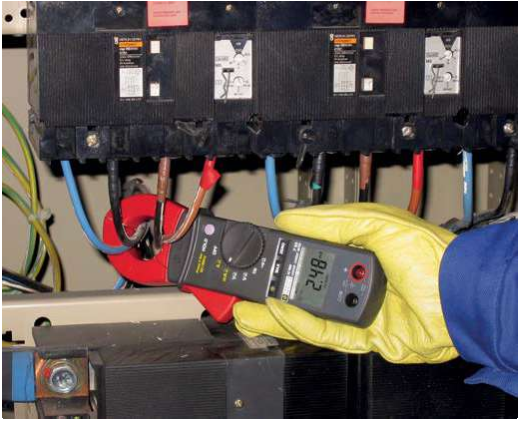

The F65 is a specialized RMS leakage current clamp meter designed for measuring small AC currents and leakage currents in electrical installations with IEC 61557-13 compliance.
Voltage Range
600V AC/DC
Accuracy
1.2% ± 5 cts
Key Features
Clamping diameter: 28 mm
Display: 10,000 counts backlit LCD
Hold & Auto power off functions
Audible Continuity (Buzzer 35 Ω)
Complied IEC 61557-13 standard
Leakage current measurement capability
Applications
Leakage current measurement
Electrical installation testing
Safety compliance testing
Preventive maintenance
Electrical troubleshooting
Ground fault detection
Technical Specifications
Display:10,000-count backlit display
Current:30 μA to 100 A AC
Resolution:10 μA
Filter:50/60 Hz anti-harmonic filter
Immunity to eddy currents:70 dB
AC/DC voltage:0.1 V to 600 V
Frequency:5 Hz to 1 kHz
Resistance:0.1 Ω to 1 kΩ
Audible continuity:< 35 Ω
Functions:Max, Relative, display memorization
Automatic power-off:Yes, with battery status indication
Safety:300 V CAT III
