Digital Multimeters
Professional Electrical Measurement Solutions
60,000 counts LCD

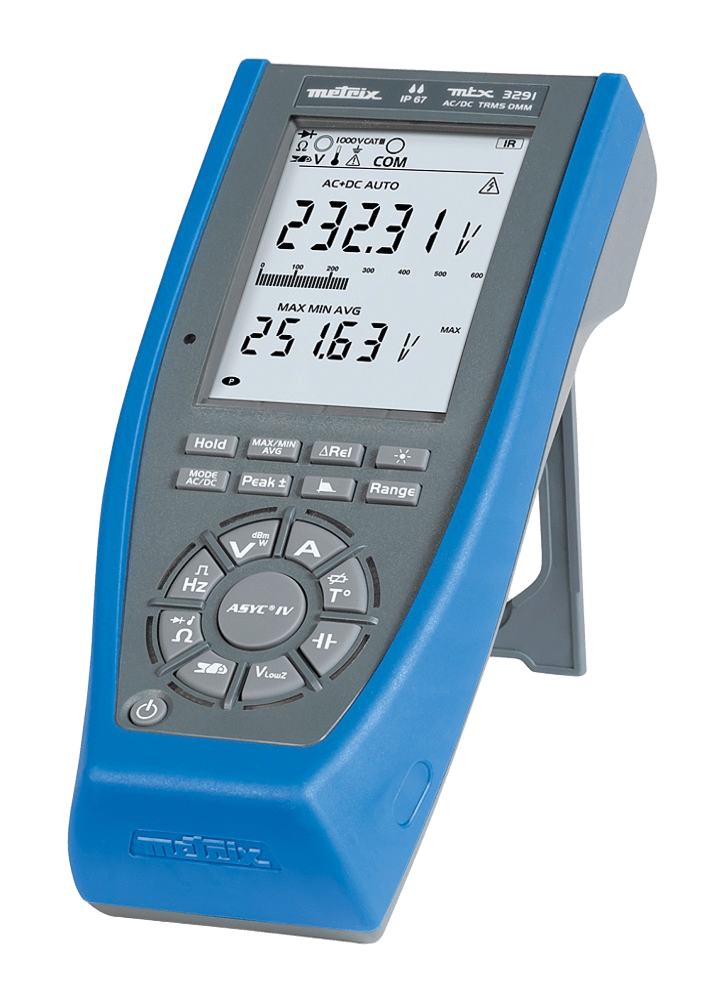

MTX 3291
High Resolution Multimeter
The MTX 3291 provides high-resolution measurements with USB communication and PC interface for advanced data logging and analysis applications.
Voltage Range
1000V AC/DC/AC+DC
Accuracy
±0.2%
Key Features
Display: 60,000 counts backlight digital monochrome
TRMS value measurement
Audible continuity detection (600 Ω SIGNAL 30 Ω ≤ 5 V)
Diode test capability
HOLD/Auto-HOLD functions
Communication: USB interface
Applications
High-precision measurements
Data logging applications
Research and development
Quality control testing
Industrial maintenance
Professional electrical work
Technical Specifications
Type:Handheld TRMS digital oscilloscope-multimeter
Display:3.5' colour TFT LCD, 320 × 240 pixels
Channels:2 isolated
Bandwidth:20 MHz
Sampling rate:50 MS/s (one-shot), 2.5 GS/s (ETS)
Memory depth:50 kpoints
Vertical sensitivity:2.5 mV/div to 200 V/div
Time base:1 ns/div to 200 s/div
Trigger modes:Edge, pulse width, delay, counting
Math functions:Add, subtract, multiply, divide, FFT (2,500 points)
Multimeter functions:TRMS AC/DC V & I, resistance, continuity, capacitance, frequency, temperature, diode test
Recording:Trend plots, up to 27,000 points
Safety:IEC 61010, CAT III 600 V, CAT II 1000 V
Protection:IP51
Power supply:Li-ion rechargeable battery, ~8 h autonomy
Communication:USB interface, SCPI protocol, DataView software
Dimensions / Weight:210 × 115 × 45 mm / 1.2 kg
