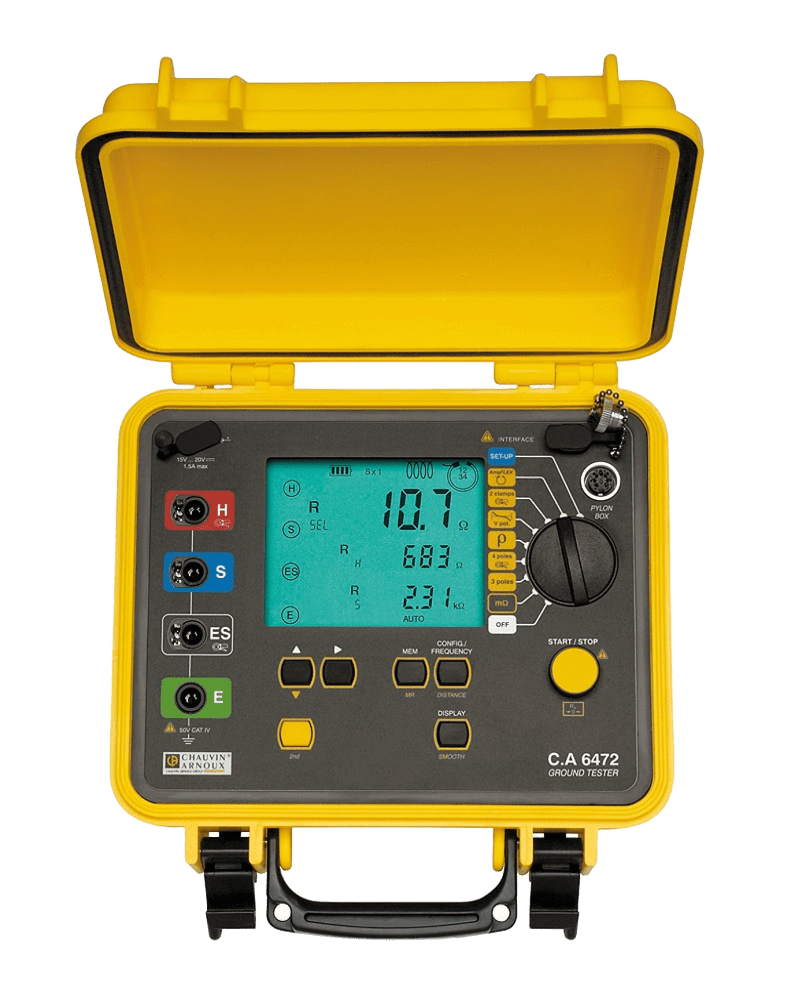

CA 6472
Advanced 3P/4P Earth Tester
Professional earth tester with advanced features for pylons and comprehensive earth system analysis. The most advanced model in the series.
Safety Rating
CAT III 600V
Accuracy
±2% + 1 count
Key Features
Backlit LCD display featuring 3 simultaneous display levels
Automatic & Expert mode operation

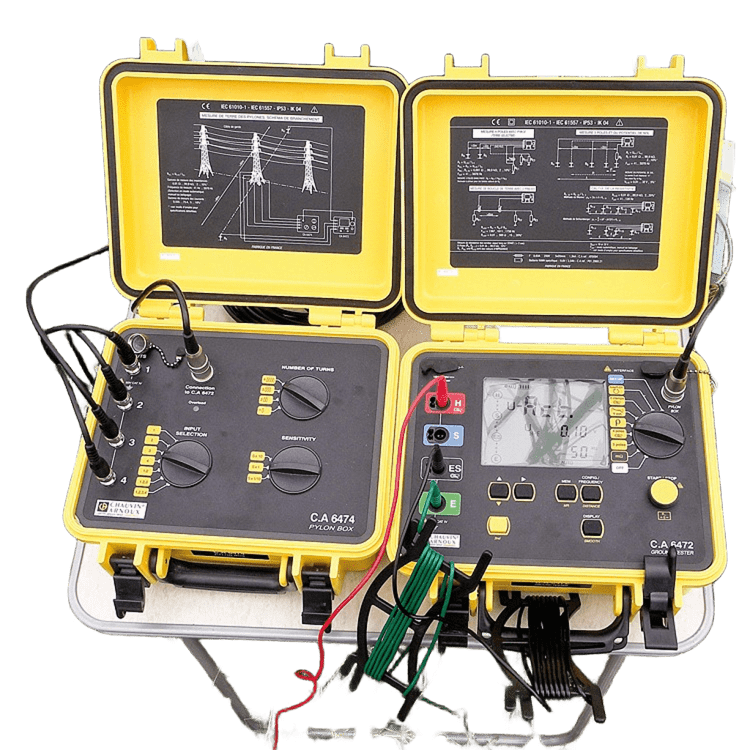

Earth measurement on Pylons with earth cable (with CA 6474 option)
Alarm function for safety monitoring
Memory: 512-record memory storage
Communication: USB interface
Applications
Research and development
Utility and substation testing
Industrial plant maintenance
Lightning protection system testing
Power transmission line testing
Advanced earth system analysis
Technical Specifications
3P measurement:Up to 10 kΩ and stray voltages up to 60 V RMS
4P measurement:Standard and selective
Earth loop measurement:With 2 clamps from 0.01 Ω to 500 Ω
Storage:512 test results
USB:Optical link
Software:Ground Tester Transfer PC software for data processing
Power supply:NiMH battery with external charger
Protection:IP53
Compliance:IEC 61557-1 -4 -5
Safety:IEC 61010 50V CAT IV
Dimensions:272 × 250 × 128 mm
Weight:3 kg
