Comprehensive Installation Testing

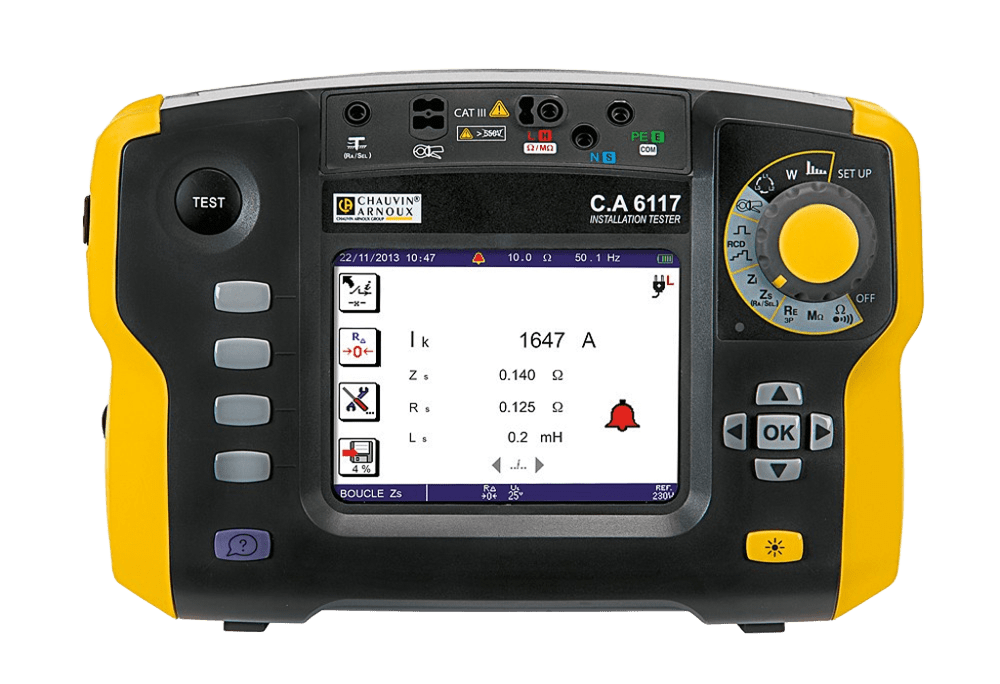

CA 6117
Advanced Installation Tester
All-in-one installation tester for all neutral systems (TT, TN, IT), ideal for industries, tertiary and residential. Compliant with international standards with advanced measurement capabilities.
Safety Rating
CAT III 550V AC/DC
Accuracy
High Precision ±1%
Key Features
Large 5.7" backlit graphic colour LCD screen
All-in-one instrument for testing electrical installations
Suitable for all neutral systems (TT, TN, IT)
Integrated fuse table for quick reading of results
Li-Ion battery for longer battery life
Measurement of voltage drop for correct sizing of conductor diameters
Applications
Electrical installation testing and verification
Industrial maintenance and troubleshooting
Earthing system verification and compliance
Safety compliance testing
Power quality analysis and monitoring
RCD testing and validation
Technical Specifications
Electrical Safety:IEC 61010-1, 600 V CAT III / 300 V CAT IV, compliant with IEC 61557
Continuity / Resistance:Test current: >200 mA, Range: up to 39.99 Ω, Resolution: 0.01 Ω, Accuracy: ±(1.5% of reading + 2 counts)
Insulation Measurement:Test voltages: 50 / 100 / 250 / 500 / 1000 V DC, Range: 0.01 MΩ to 2 GΩ, Accuracy: ±(5% of reading + 3 counts), Short-circuit current: ≤ 3 mA
Earth Resistance:3P & 1P selective, Range: 0.20 Ω to 40 kΩ, Resolution: 0.01 Ω to 10 Ω (depending on range), Accuracy: ±(2–10% depending on range)
Loop Impedance (Zs & Zi):Range: 0.05 Ω to 3999 Ω, Resolution: 0.001 Ω to 1 Ω, Accuracy: ±(5–15% depending on mode)
Short-circuit current calculation:Up to 20 kA
RCD Testing:Supports AC, A, F, B, B+, and EV types. Ramp and pulse test modes. Test current range: 6 mA to 1000 mA (depending on type and voltage). Trip time measurement: 0 to 500 ms with 0.1 ms resolution
Voltage & Frequency Measurement:Voltage: 0 to 550 V AC/DC, Frequency: 10 to 500 Hz
Current Measurement (via clamp):Range: 5 mA to 200 A (depending on clamp model)
Harmonics:Up to the 50th order
Display & Storage:5.7” backlit graphic colour LCD, 320 x 240 pixels, 3-level data storage, USB communication for report generation
Power Supply:Rechargeable Li-ion battery 10.8 V / 5.8 Ah, Battery life: up to 30 hours continuous operation
Mechanical & Environmental:Dimensions: 280 × 190 × 128 mm, Weight: 2.2 kg, Protection: IP53 / IK04, EMC compliance: IEC 61326-1
