Standard Installation Testing

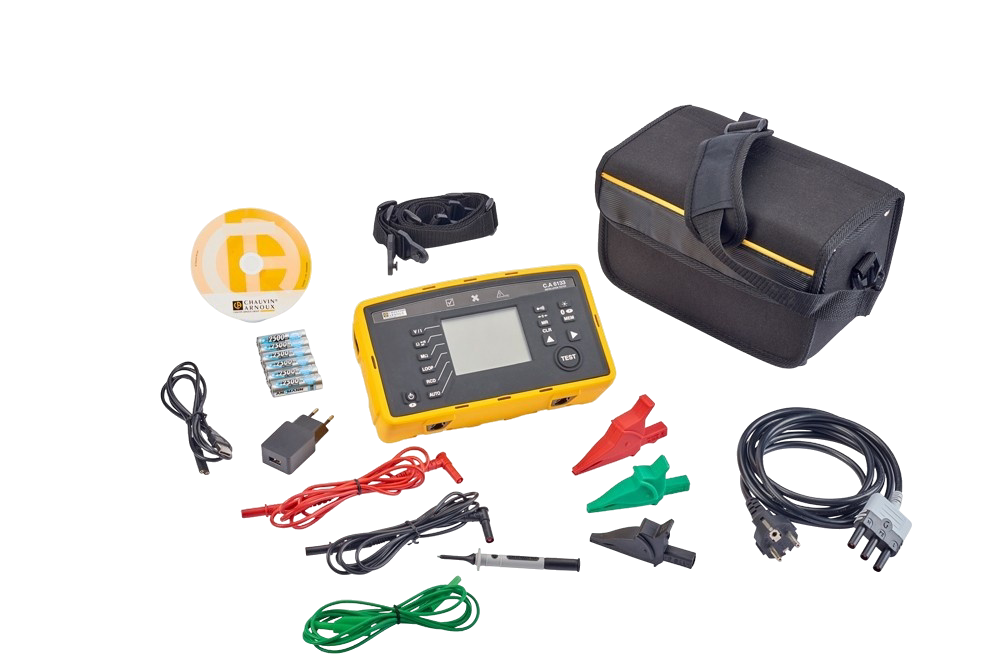

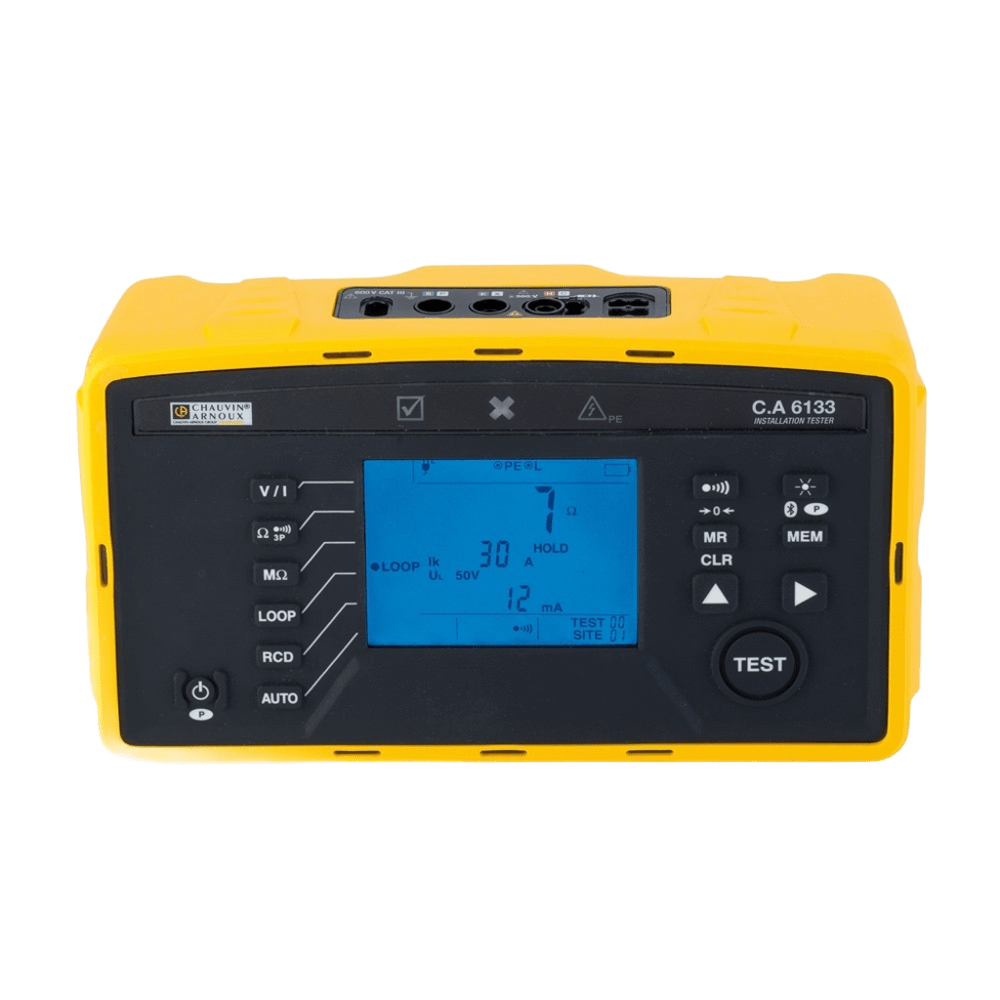

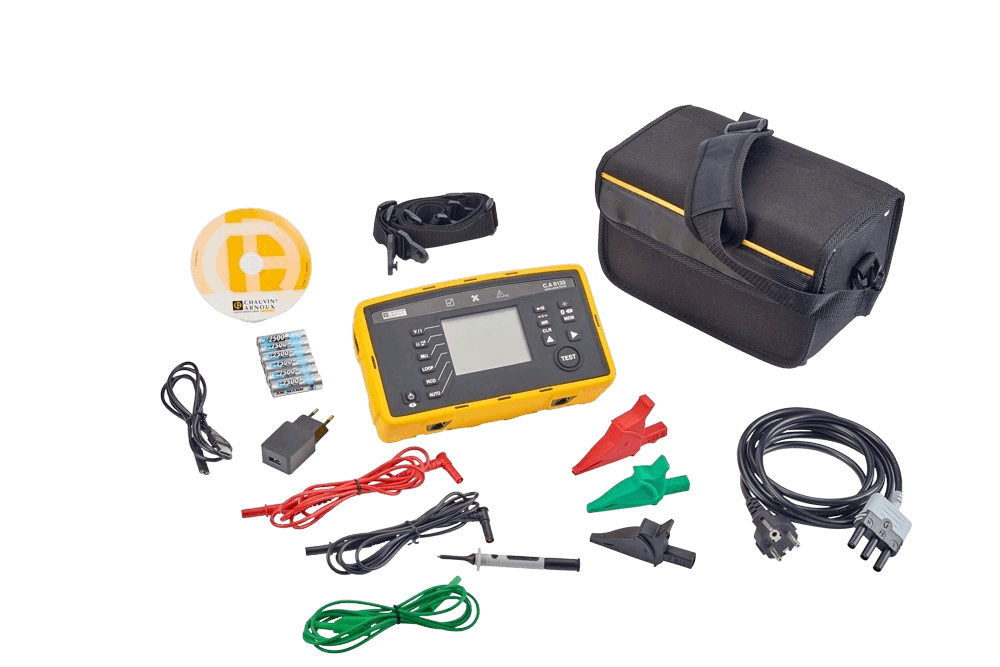

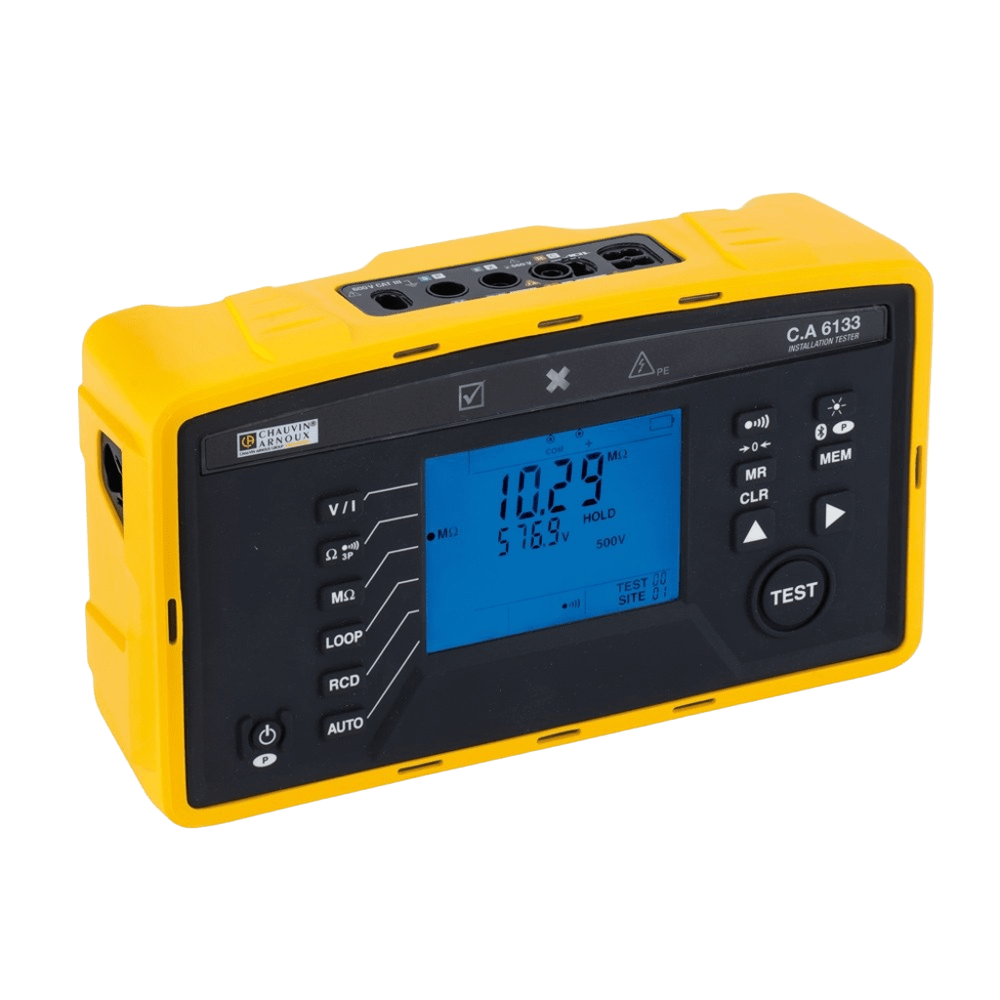

CA 6133
Standard Installation Tester
Standard installation tester with Android app for report generation, automatic test sequences, and multiple power supply options. Ideal for routine installation testing.
Safety Rating
CAT III 550V AC/800V DC
Accuracy
Standard Precision ±2%
Key Features
Custom 231-segment LCD with blue backlighting
Continuity measurement at 0.2A (200mA)
Android application for Report generation
Earth measurement by stake and loop methods
Insulation testing up to 1000V
RCD testing: current and trip time
Applications
Electrical installation testing
Industrial maintenance
Earthing system verification
Safety compliance testing
RCD testing and validation
Routine electrical inspections
Technical Specifications
Voltage measurement:550 VAC / 800 VDC
Continuity:200 mA
Resistance:1 to 99.99 kΩ
Insulation:250V, 500V or 1,000 V test voltage - Zs (Z L-PE) loop without tripping: 1 to 2,000 Ω, calculation of Ik
High-current loop:Zs (Z L-PE) with tripping and Zi (Z L-N or Z L-L), from 0.1 to 400 Ω, calculation of Ik
Type AC & A RCDs:30mA, 100mA, 300 mA, 500 mA, 650 mA
RCD in pulse mode:Tripping time
RCD in ramp mode:Tripping current (30 mA)
Phase rotation:45 to 550V; 45 to 65 Hz
Frequency measurement:30 Hz to 999.9 Hz
Insulation additional:1,000 V test voltage
3P earth (stakes):Up to 2,000 Ω
Automatic RCD test sequence:No trip-pulse-ramp
Automatic test sequence:Loop-RCD-MΩ
Data storage:30 sites with 99 tests each by pressing the MEM key or using the optional remote-control probe
Power supply:Rechargeable batteries with built-in charger
Recharging:Via mains, USB socket or vehicle cigarette lighter socket
Bluetooth communication:Yes
Automatic recognition:Optional MN73A external clamp
