5kV Testing

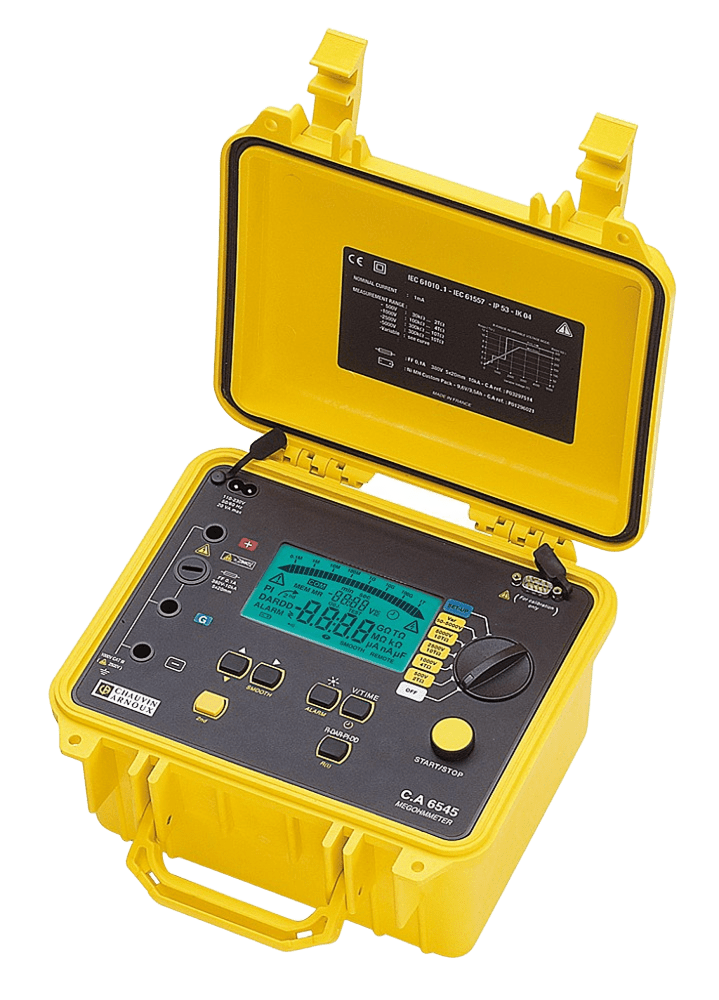

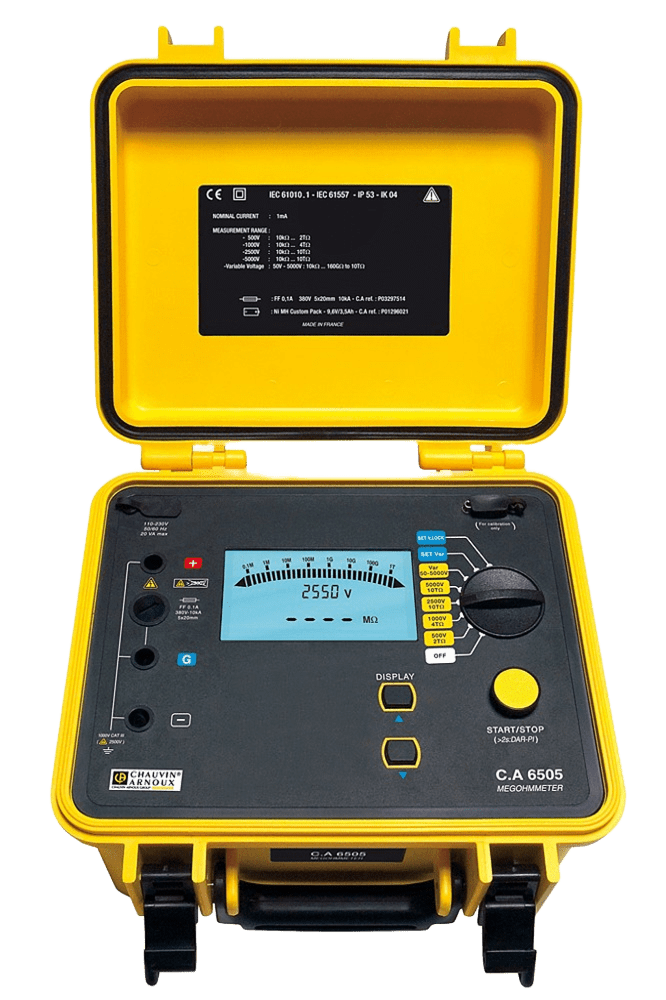

CA 6505/CA 6545
5kV High Voltage Insulation Testers
High voltage 5kV insulation testers for power utilities and industrial plants with programmable test duration and advanced safety features.
Safety Rating
CAT III 5100V
Range
10 kΩ to 10 TΩ
Key Features
Display : Backlit LCD graphic display with bargraph
Programmable test duration
Automatic calculation of the DAR/PI
DD calculation (CA 6545)
Locking test voltage
Programmable Alarms (CA 6545)
Applications
High voltage equipment
Power utilities
Industrial plants
Transformer testing
Cable testing
Technical Specifications
Test voltage:Fixed 500/1,000/2,500/5,000 V DC or programmable from 40 V to 5,100 V DC
Measurement range:10 kΩ to 10 TΩ
Programmable test duration:Yes
DAR & PI ratios:Calculation of DAR & PI quality ratios
Measurements:Voltage, capacitance, leakage current
Display:LCD screen with bargraph
Power supply:NiMh rechargeable battery
Compliance:IEC 61557
Protection rating:IP53
Safety category:IEC 61010 1,000 V CAT III
Dimensions:270 × 250 × 180 mm
Weight:4.3 kg
