1kV Testing

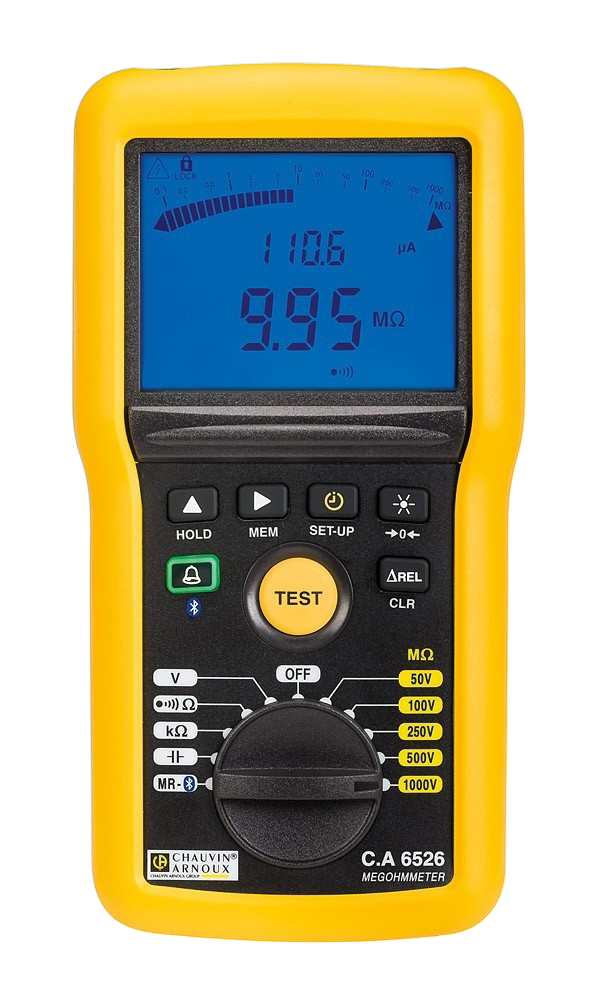

CA 6524/CA 6526
Advanced 1kV Insulation Testers
Advanced 1kV insulation testers with Bluetooth connectivity, large memory storage, and configurable alarms for professional testing applications.
Safety Rating
CAT IV 600 V
Range
10 kΩ to 200 GΩ
Key Features
Display : 4000 counts, double + bargraph
Continuity at 200mA (0.00Ω - 10.00Ω)/ 20mA (0.0Ω - 100.0Ω)
PI & DAR
Visual Pass/Fail : Red/Green (CA 6526)
Timer (mins) : Upto 39:59
Configurable alarms
Applications
Industrial testing
Field testing
Quality assurance
Preventive maintenance
R&D applications
Technical Specifications
INSULATION:50-100-250-500-1000 V test voltage
Measurement range:200 GΩ
Test mode:Manual, Lock, Timer, PI, DAR
Continuity:200mA / 20mA measurement current
Voltage measurement:700 V
Frequency measurement:15.3 - 800 Hz
Resistance measurement:0 - 1,000 kΩ
Display:Double display + logarithmic bargraph
Storage:300 measurements
Magnetic mounting elements:Yes
Alarms:Yes
Power supply:6 × LR6 / AA batteries
Dimensions:211 × 108 × 60 mm
Weight:850 g
Protection rating:IP54, safety category: 600 V CAT IV
