Specialized Testing

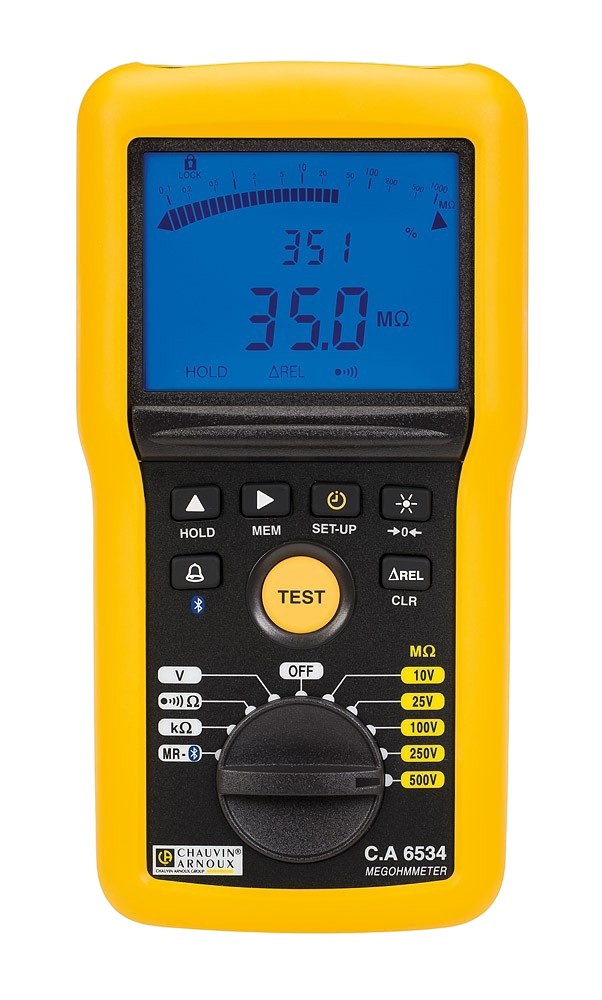

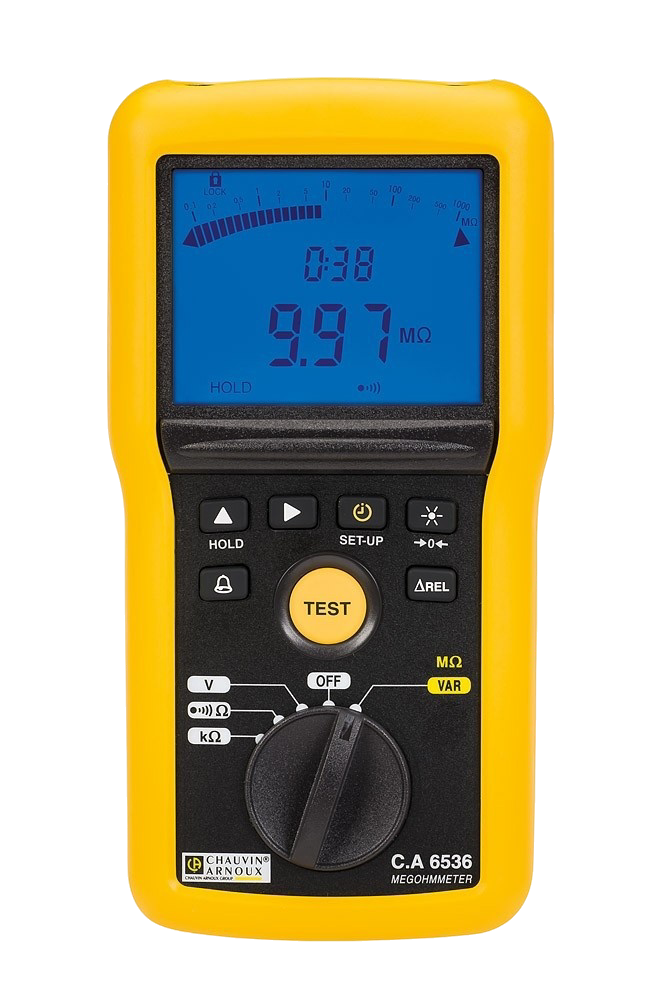

CA 6532/CA 6534/CA 6536
Specialized Insulation Testers
Specialized insulation testers designed for telecommunications, electronics, and aerospace applications with customizable voltage steps and advanced features.
Safety Rating
CAT IV 600 V
Range
2 kΩ to 50 GΩ
Key Features
Display : 4000 counts, double + bargraph
PI & DAR (CA 6532)
Continuity at 200mA (0.00Ω - 10.00Ω)/ 20mA (0.0Ω - 100.0Ω)
Timer (mins) : Upto 39:59
Memory : 1300 records (CA 6532 & 6534)
Communication : Bluetooth (CA 6532 & 6534)
Applications
Telecommunications
Electronics
Avionics, Space & Defense
Low voltage systems
Sensitive equipment testing
Technical Specifications
INSULATION:50 - 100 V test voltage
Measurement range:20 GΩ
Test mode:Manual, Lock, Timer, PI, DAR
Continuity:200 mA / 20 mA measurement current
Voltage measurement:700 V
Frequency measurement:15.3 - 800 Hz
Resistance measurement:0 - 1,000 kΩ
Capacitance measurement:0.1 nF - 10 μF
Cable length calculation:0 - 100 km
Display:Double display + logarithmic bargraph
Storage:1,300 measurements
Magnetic mounting elements:Yes
Alarms:Yes
Communication:Bluetooth class 2
Power supply:6 × LR6 / AA batteries
Dimensions:211 × 108 × 60 mm
Weight:850 g
Protection rating:IP54, safety category: 600 V CAT IV
