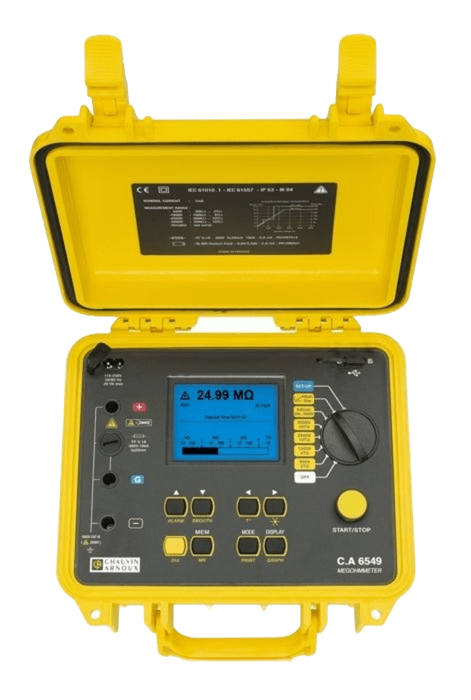

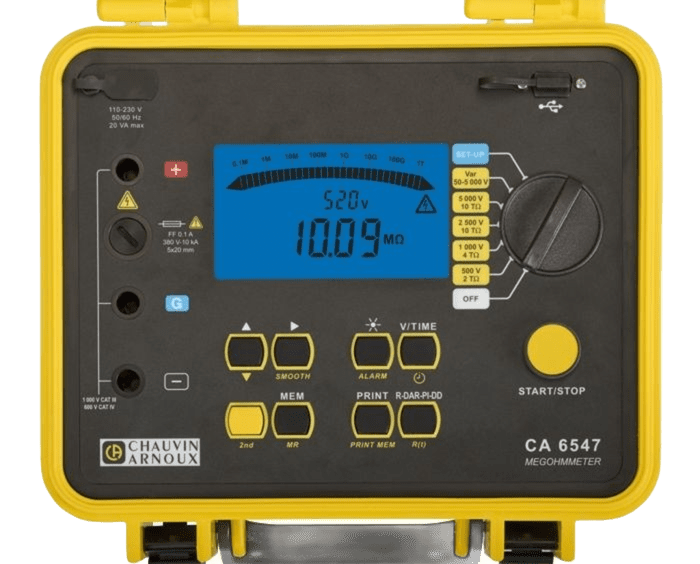

CA 6547/CA 6549
Advanced 5kV Insulation Testers
Advanced 5kV insulation testers with USB connectivity, large memory storage, and direct R(t) curve plotting for comprehensive power system analysis.
Safety Rating
CAT III 5100V
Range
10 kΩ to 10 TΩ
Key Features
Large backlit LCD screen, with digital display & bargraph
Automatic calculation of the DAR/PI/DD ratios
Programmable alarms
Displays a error code in an anamoly condition (CA 6549)
Direct plotting resistance over time (R(t)) curves in display (CA 6549)
Calculation of R at Reference Temperature (T°) (CA 6549)
Applications
Power system analysis
Industrial maintenance
Utility testing
Research applications
Advanced diagnostics
Technical Specifications
Measurement range:10 kΩ to 10 TΩ
4 fixed test voltages:500 / 1,000 / 2,500 and 5,000 V
Adjustable test voltage position:40 to 5,100 V in 10 V or 100 V increments
Large backlit LCD screen:Digital display and bargraph
Quantitative insulation analysis:DAR, PI, and DD (dielectric discharge) quality ratios calculated automatically and R(t) curve plotted
Large number of functions:Programmable test duration, test voltage locking, smooth function, programmable alarms, etc.
Storage:Several thousand measurements
USB connector:For connection to PC (Megohmmeter data processing software)
Power supply:NiMH rechargeable battery for 30 days’ operation with 10 DAR measurements and 5 PI measurements per day
Electrical safety:IEC 61010-1 Cat.III 1000V or Cat.I 2500V and IEC 61557
Dimensions:270 × 250 × 180 mm
Weight:4.3 kg
