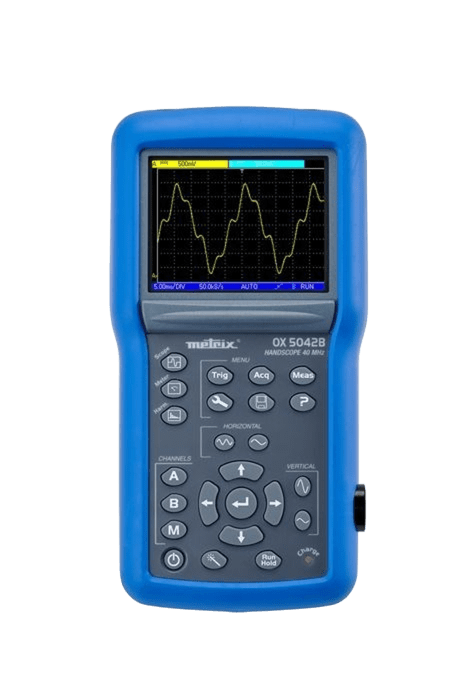

OX 5022/OX 5042
Handheld Digital Oscilloscope
Compact handheld oscilloscope with multimeter functions, designed for field measurements and troubleshooting applications with isolated channels for safety.
Safety Rating
CAT III 600V
Bandwidth
20-40 MHz Bandwidth
Key Features
3.5" colour TFT - Resolution 320 x 240
LED backlighting
Screen shot - Upto 100 files
PC interface
2 isolated channels
Input impedance: 1 MΩ ±0.5%
Applications
Field service and maintenance
Automotive diagnostics
Industrial troubleshooting
Educational applications
Power electronics testing
Electrical installation testing
Technical Specifications
Oscilloscope bandwidth:20 MHz (OX5022B) / 40 MHz (OX5042B)
Channels:2 isolated, 600 V CAT III
Sampling rate:2 GS/s (ETS), 50 MS/s (one-shot)
Vertical sensitivity:5 mV/div to 200 V/div
Sweep speed:25 ns/div to 200 s/div
Memory depth:2,500 points per channel
Math functions:+, -, ×, ÷, inversion; auto scaling
Multimeter mode:2 × 8,000-count, AC/DC/AC+DC V & I, resistance, continuity, capacitance, frequency, temperature, diode, power
Harmonic analysis:Up to 31st order, 40–450 Hz fundamental
Display:3.5" TFT colour LCD (320×240), LED backlight
Recording:2,700 measurements (5 min–1 month)
Communication:Optically-isolated USB, SCPI protocol, SX-Metro software
Power supply:6×AA NiMH / LR6 batteries, up to 8.5 h runtime
Protection:IEC 61010-1, 600 V CAT III, EMC compliant
Dimensions / Weight:214 × 110 × 57 mm / 1.2 kg
Accessories:Probes, leads, clips, USB charger, optical cable, carrying bag
