Oscilloscopes
Professional Signal Measurement Solutions
Advanced Oscilloscope

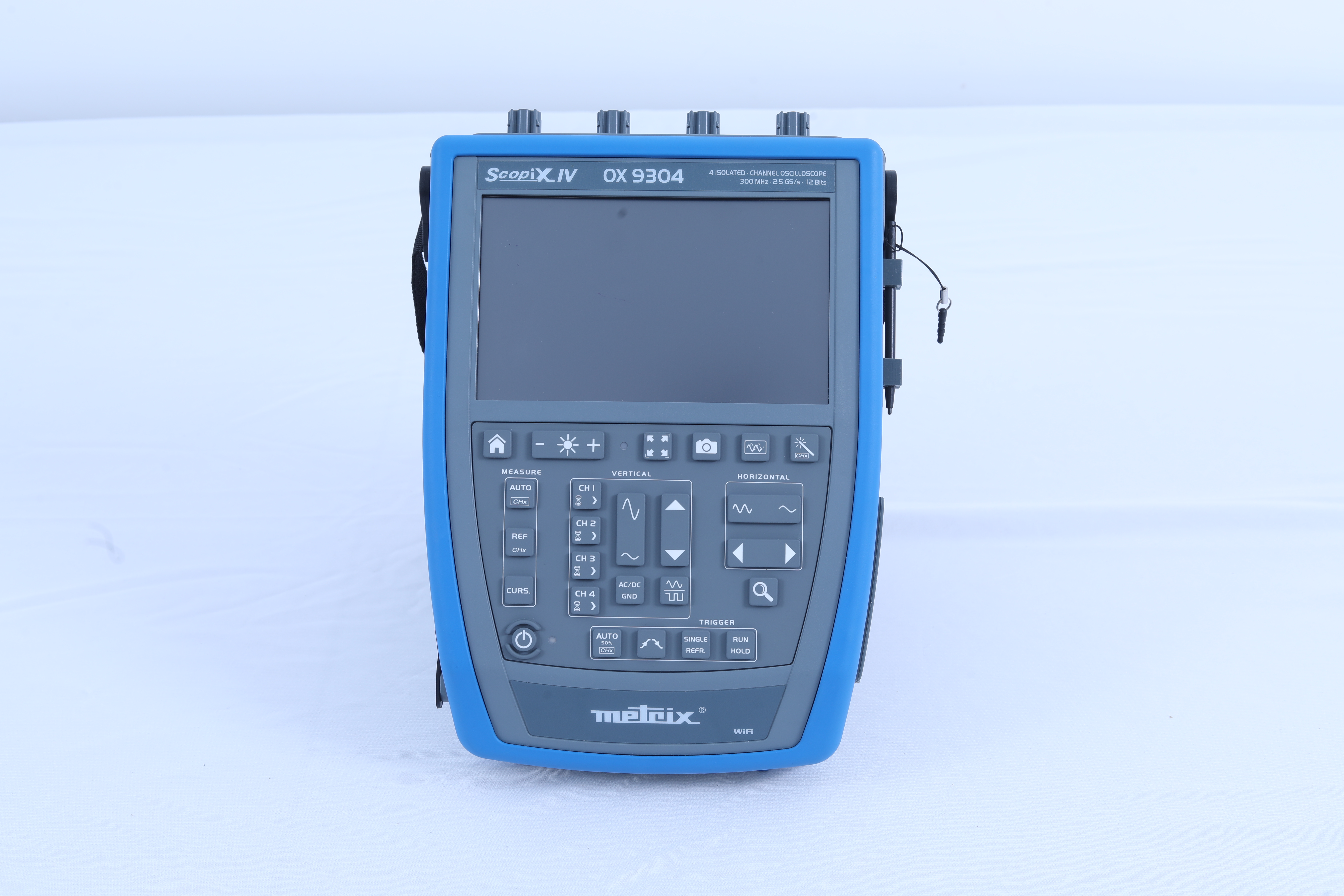

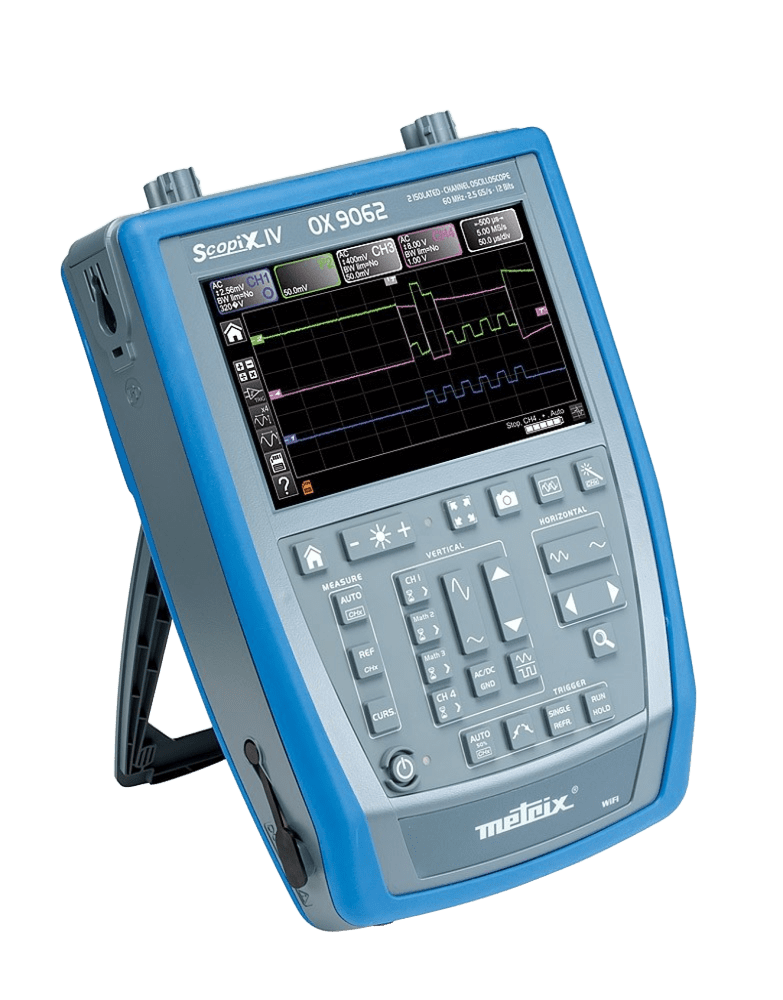

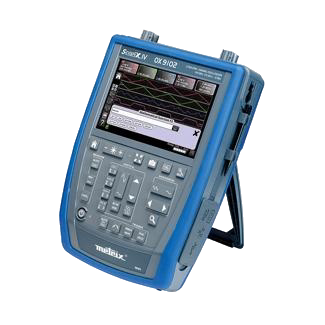

OX 9062/OX 9102/OX 9104/OX 9304
Portable Digital Oscilloscope
High-performance portable oscilloscope with advanced triggering, analysis capabilities and comprehensive measurement functions including harmonic analysis.
Safety Rating
CAT II 300V
Bandwidth
60-300 MHz Bandwidth
Key Features
7" WVGA colour TFT LCD touch screen, 800 x 480
LED backlighting
2,500 real acquisition points on screen
PC interface
2 or 4 isolated channels
Input impedance: 1 MΩ ± 0.5%
Applications
R&D and design verification
Production testing
Quality control
Educational laboratories
Service and repair
Power quality analysis
Harmonic analysis
Technical Specifications
Display:7" WVGA TFT colour touchscreen (800 × 480), LED backlit
Channels:2 isolated, 600 V CAT III (Probix connectors)
Bandwidth:60 MHz
Sampling rate:2.5 GS/s (one-shot), 100 GS/s (ETS)
Vertical sensitivity:2.5 mV/div to 200 V/div (16 ranges, 12-bit resolution)
Sweep speed:1 ns/div to 200 s/div, Roll mode 100 ms–200 s/div
Memory depth:100 kpts/channel
Triggering:Edge, pulse width, delay, counting; auto, normal, single
Math/FFT:+, -, ×, ÷, advanced math editor, 2,500-point FFT (linear/log, up to 80 dB dynamic)
Automatic measurements:20 per channel, with cursors & reference deviation
Multimeter mode:2-channel TRMS, 8,000 counts, AC/DC/AC+DC V & I, resistance, continuity, capacitance, frequency, diode, temperature (K, Pt100)
Power analysis:Single & 3-phase power (active, reactive, apparent, PF)
Harmonic analysis:2 channels, up to 63rd order, 40–450 Hz, THD & phase
Logger mode:100,000 measurements, interval from 0.2 s to 20,000 s
Storage:1 GB internal + microSD (up to 32 GB SDHC / >32 GB SDXC)
Connectivity:USB (device), Ethernet (100BaseT), Wi-Fi, ScopeNet software
Safety:IEC 61010-2-30, 600 V CAT III / 1000 V CAT II, IP54, EMC EN61326-1
Power supply:Li-ion rechargeable 6,900 mAh, ~8 h operation, fast charge 2 h
Dimensions / Weight:292.5 × 210.6 × 66.2 mm / 2.1 kg
