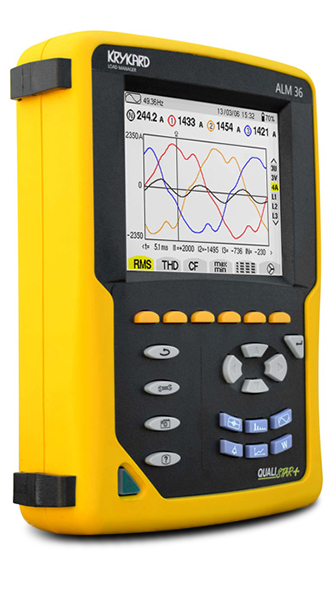

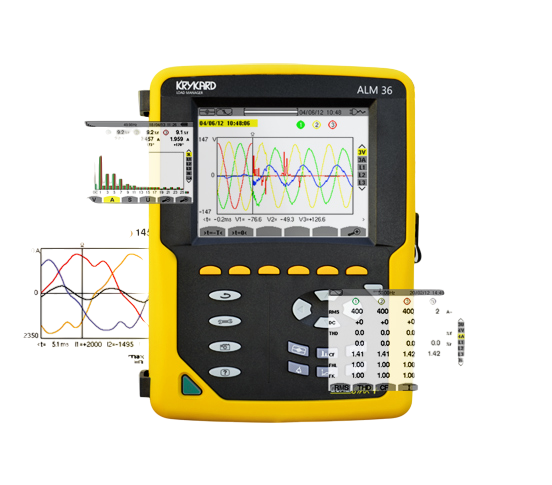

ALM 36
4 Channel Power Quality Analyzer
The ALM 36 provides professional-grade power analysis with IEC compliance, advanced alarms, and transient capture for comprehensive quality assessment in demanding applications.
Voltage Range
1,000V Ph-N
Accuracy
±0.2%
Key Features
Transient capture up to 210 counts
TrueInrush function for motor analysis
THD & Harmonics up to 50th order
Pst & Plt flicker measurements
IEC compliance for professional use
Advanced alarm system
Applications
Advanced power quality analysis
Industrial equipment monitoring
Motor and drive system analysis
Power system commissioning
Compliance testing and verification
Critical facility monitoring
Technical Specifications
- Inputs:4 Voltage / 4 Current
- TRMS AC+DC Voltage:2–1000 V (ph-N), 2–2000 V (ph-ph)
- TRMS AC+DC Current:5 mA–10 kA (probe dependent)
- Frequency:40–70 Hz
- Power values:W, VA, var, PF, DPF, cos φ
- Energy values:Wh, VAh, varh
- Harmonics:DC, 1st to 50th order; THD for V & A
- Flicker:Pst (10 min) & Plt (2 hrs)
- Other PQ parameters:Energy loss, Voltage & Current unbalance (%)
- Transient capture:Up to 210 events
- Alarms:Up to 40 types, 16,000 events max
- Recording:Trend data to SD card; snapshots up to 50 screens + channel data
- Display:Color TFT 320×240 with vectorial representation
- Protection:IP53; IEC/EN 61010-1 CAT III 1000V / CAT IV 600V
- Interfaces:Isolated USB, SD card, DataView® software
- Battery life:>13 h (display ON), up to 25 h (recording, display OFF)
- Dimensions / Weight:250 × 200 × 67 mm / 1.95 kg
