Power Quality Analyzers
Professional Power Analysis Solutions
Class A Certified

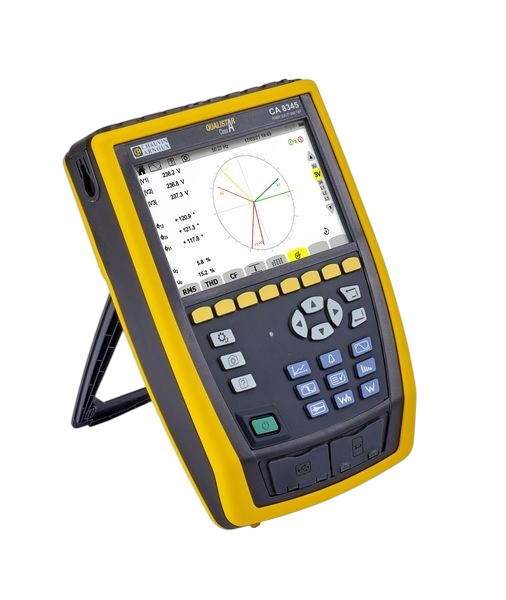

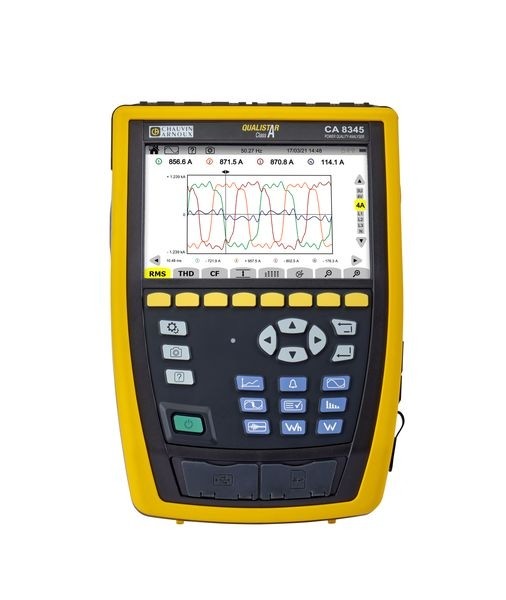

CA 8345
Class A Power Quality Analyzer
The flagship CA 8345 delivers industry-leading performance with Class A certification, advanced harmonic analysis, and superior storage capacity for the most demanding applications.
Voltage Range
1,000V Ph-N
Accuracy
±0.1%
Key Features
Class A certified performance
Harmonics up to 127th order
Interharmonics up to 126th order
2.5 μs transients capture
16,362 alarms of 40 conditions
Superior data storage capacity
Applications
Premium power quality analysis
Utility and grid monitoring
Research and development
High-precision measurements
Certification and compliance testing
Critical infrastructure monitoring
Technical Specifications
- Inputs:5 Voltage / 4 Current (isolated)
- TRMS AC+DC Voltage:5–1000 V AC/DC
- Harmonics:DC to 127th order; Interharmonics to 126th order
- Frequency:42.5–69 Hz
- Transient capture:No limit (SD card dependent), shockwave up to 12 kV at 500 ns sampling
- Flicker:Pst < 0.1
- Unbalance:Voltage unbalance 0.5–5% (±0.15% abs)
- Trend recording:>900 parameters; 3 days @ 200 ms, 15 days @ 1 s, 45 days @ 3 s
- Sampling rate:Voltage 400 kS/s, Current 200 kS/s, Surge 2 MS/s
- Alarms:52 types, up to 20,000; email notifications
- Power/Energy:Composite measurement modes
- Screenshots:Unlimited (SD card dependent)
- Power supply:100–1000 V AC/DC phase powered (external block included)
- Battery:5.8 Ah Li-ion; ≤6 h (display on), ≤10 h (display off)
- Display:7" color LCD touchscreen, 800×480 (WVGA)
- Clock/GPS:Built-in
- Protection:IP54; IEC 61010 CAT IV 1000V
- Standards compliance:IEC 61000-4-30 Ed 3 Class A, IEC 61557-12, IEC 62586
- Interfaces:USB, Ethernet, Wi-Fi, Web server, DataViewSync™
- Dimensions / Weight:200 × 285 × 55 mm / 1.9 kg
