Thermal Imagers

    Professional Thermal Imaging Solutions

    384 × 288 IR Resolution

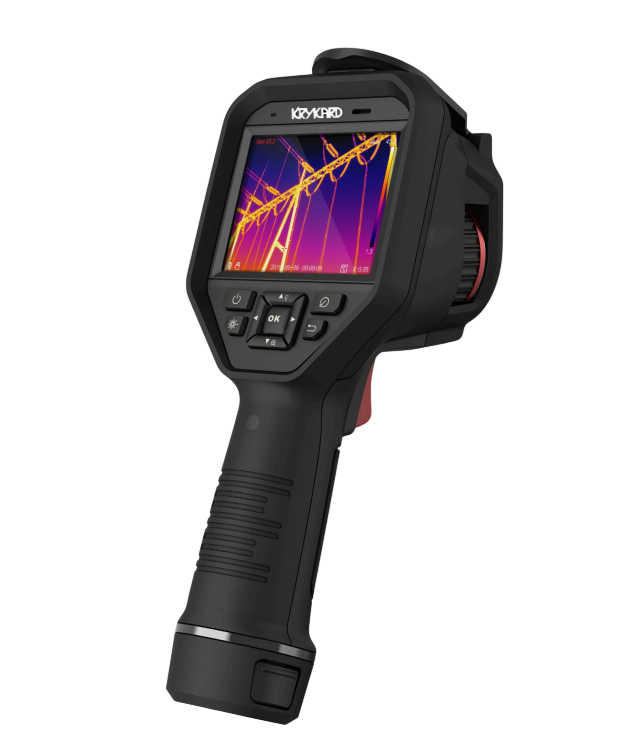

    TC 3360

    Wide Field Imager

    Wide field thermal imager with enhanced resolution, ideal for comprehensive thermal analysis and large area inspections.

    IR Resolution

    384 × 288

    Accuracy

    ±2°C, ±2%

    Temperature Range

    -20°C to 550°C

    carousel slide 1
    carousel slide 2

    Key Features

    IR Resolution: 384 × 288 (110,592 pixels)
    SuperIR Resolution: 768 × 576
    Temperature Range: -20°C to 550°C
    Accuracy: ±2°C, ±2%
    Field of View (FOV): Wide angle coverage
    NETD: < 40 mK

    Applications

    Large area inspections
    Building surveys
    Industrial monitoring
    Solar panel inspections
    Electrical distribution
    Facility management

    Technical Specifications

    IR Resolution:384 × 288
    SuperIR Resolution:768 × 576
    Temperature Range:-20°C to 650°C
    Accuracy:±2°C, ±2%
    FOV:41.1° × 30.5°
    NETD:< 30 mK
    Focus:Manual, minimum distance 0.1 m
    Image Frequency:30 Hz
    Display:640 × 480, 3.5" LCD touchscreen
    Image Modes:Thermal / Visual / Fusion / PIP / Blending
    Battery:~4 hours (interchangeable)
    Memory:64 GB Micro SD (100,000 images, 300 hrs video)
