Thermal Imagers
Professional Thermal Imaging Solutions
480 × 360 IR Resolution

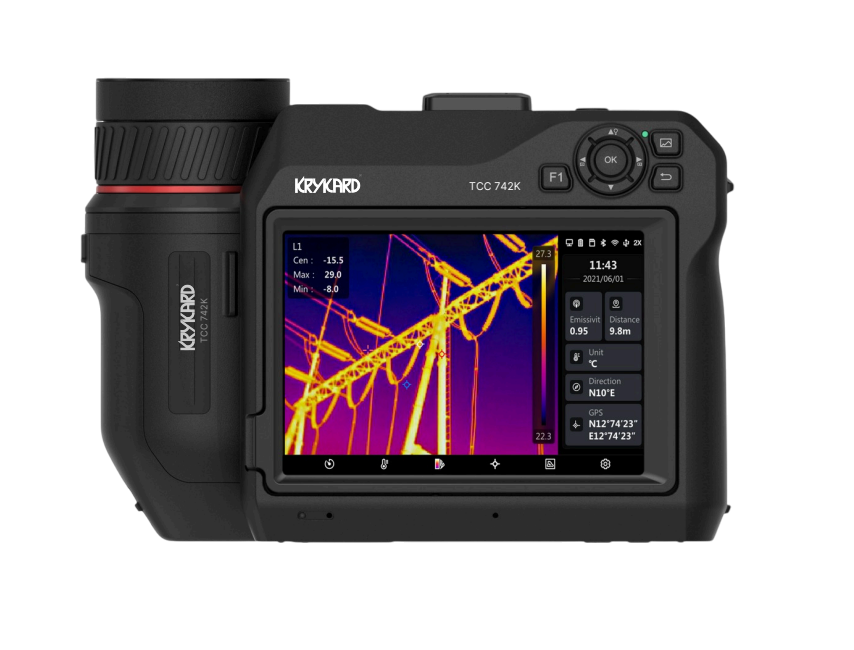

TCC 7460 / TCC 742K
Professional Camcorder
Professional thermal camcorder with video recording capabilities for comprehensive thermal documentation and analysis.
IR Resolution
480 × 360
Accuracy
±2°C, ±2%
Temperature Range
-20°C to 1200°C
Key Features
IR Resolution: 480 × 360 (172,800 pixels)
Video recording capability
Temperature Range: -20°C to 1200°C
Accuracy: ±2°C, ±2%
Professional camcorder design
NETD: < 30 mK
Applications
Process monitoring
Training and education
Documentation
Research applications
Quality assurance
Professional reporting
Technical Specifications
IR Resolution:480 × 360
SuperIR Resolution:960 × 720
Temperature Range:-20°C to 650°C (TCC 7460), -40°C to 2200°C (TCC 742K)
Accuracy:±1°C, ±1%
FOV:Multiple lenses – L6: 6° × 4.5°, L9: 9° × 6.8°, L19: 18.7° × 14°, L37: 37.3° × 27.8°
NETD:< 30 mK
Focus:Laser AF / Continuous AF / Manual / Touch AF
Min Focus:L6 – 2 m, L9 – 1 m, L19 – 0.15 m, L37 – 0.15 m
Image Frequency:30 Hz
Display:1280 × 720, 5" LCD touchscreen
Battery:~4 hours (interchangeable)
Memory:128 GB SD card (120,000 images, 500 hrs video)
