Thermal Imagers

    Professional Thermal Imaging Solutions

    640 × 480 IR Resolution

    TC 4660 / TC 4660H

    High-End Thermal Imager

    High-end thermal imager with maximum resolution and extended temperature range for the most demanding professional applications.

    IR Resolution

    640 × 480

    Accuracy

    ±2°C, ±2%

    Temperature Range

    -20°C to 1200°C

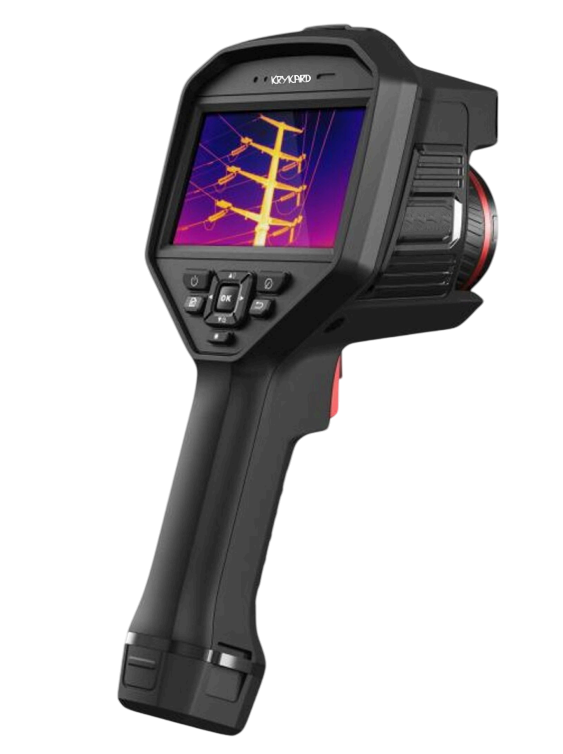

    carousel slide 1
    carousel slide 2

    Key Features

    IR Resolution: 640 × 480 (307,200 pixels)
    SuperIR Resolution: 1280 × 960
    Temperature Range: -20°C to 1200°C
    Accuracy: ±2°C, ±2%
    Maximum performance
    NETD: < 30 mK

    Applications

    High-temperature industrial processes
    Advanced research
    Precision diagnostics
    Quality control
    Scientific applications
    Professional inspections

    Technical Specifications

    IR Resolution:640 × 480
    SuperIR Resolution:1280 × 960
    Temperature Range:-20°C to 650°C (TC 4660), -20°C to 2000°C (TC 4660H)
    Accuracy:±2°C, ±2%
    FOV:25° × 19° (optional lens available)
    NETD:< 35 mK
    Focus:Laser AF / Continuous AF / Manual / Touch AF, min. 0.25 m
    Image Frequency:50 Hz
    Display:800 × 480, 4.3" LCD touchscreen
    Battery:~4 hours (interchangeable)
    Memory:64 GB Micro SD (60,000 images, 54 hrs video)
