Thermal Imagers
Professional Thermal Imaging Solutions
384 × 288 IR Resolution

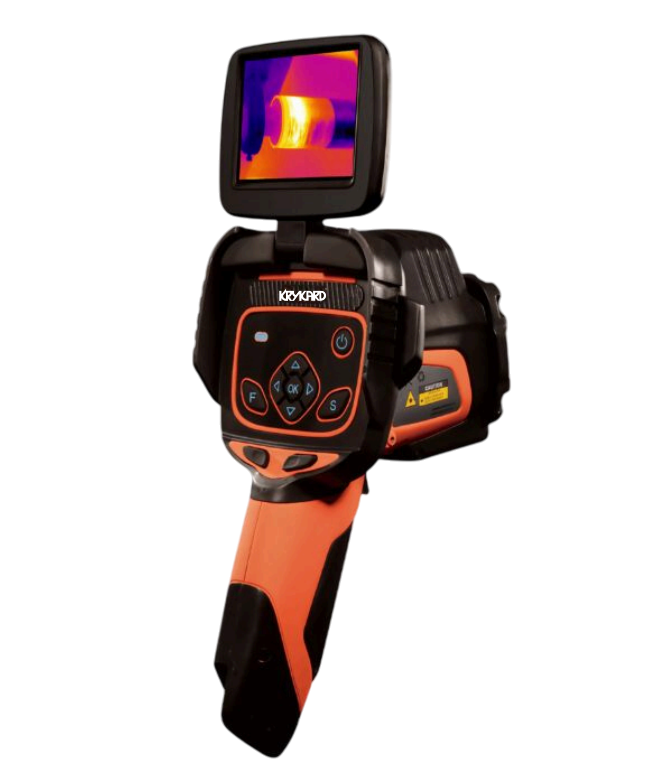

TC P360
Pistol Grip Imager
Pistol grip thermal imager designed for comfortable operation during extended use, featuring high resolution and ergonomic design.
IR Resolution
384 × 288
Accuracy
±2°C, ±2%
Temperature Range
-20°C to 550°C
Key Features
IR Resolution: 384 × 288 (110,592 pixels)
SuperIR Resolution: 768 × 576
Temperature Range: -20°C to 550°C
Accuracy: ±2°C, ±2%
Ergonomic pistol grip design
NETD: < 40 mK
Applications
Extended inspections
Industrial maintenance
Electrical troubleshooting
Mechanical diagnostics
Building inspections
Field service work
Technical Specifications
IR Resolution:384 × 288
SuperIR Resolution:768 × 576
Temperature Range:-20°C to 650°C
Accuracy:±2°C, ±2%
FOV:24° × 18° (optional lens available)
NETD:≤ 50 mK
Focus:Auto/Motorized, minimum distance 0.15 m
Image Frequency:50 Hz
Display:640 × 480, 3.5" capacitive touchscreen
Image Modes:IR / CCD / Duo Vision / Duo Vision Plus
Battery:~8 hours (built-in)
Memory:16 GB TF card (65,000+ images)
