Thermal Imagers
Professional Thermal Imaging Solutions
256 × 192 IR Resolution

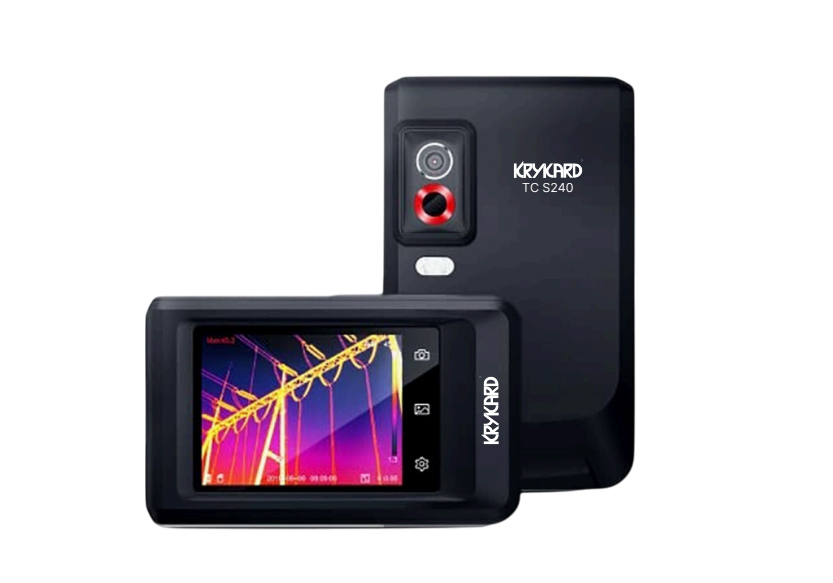

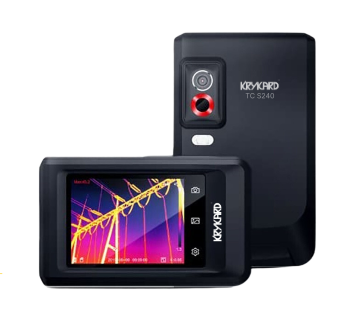

TC S240
Touch Screen Imager
Compact thermal imager with auto-rotation display and advanced touch screen interface for intuitive operation.
IR Resolution
256 × 192
Accuracy
±2°C, ±2%
Temperature Range
-20°C to 400°C
Key Features
IR Resolution: 256 × 192 (49,152 pixels)
SuperIR Resolution: Yes, on captured images & live view
Temperature Range: -20°C to 400°C
Accuracy: ±2°C, ±2%
Field of View (FOV): 50° × 37.2°
NETD: < 40 mK
Applications
Professional inspections
Building diagnostics
Electrical maintenance
Industrial applications
Energy audits
Quality assurance
Technical Specifications
IR Resolution:256 × 192
SuperIR Resolution:Yes (captured & live view)
Temperature Range:-20°C to 400°C
Accuracy:±2°C, ±2%
FOV:50° × 37.2°
NETD:< 40 mK
Focus:Fixed, minimum distance 0.3 m
Image Frequency:25 Hz
Display:640 × 480, 3.5" LCD touchscreen (auto-rotation)
Image Modes:Thermal / Visual / Fusion / PIP / Blending
Battery:~4 hours (built-in)
Memory:16 GB (60,000 images, 54 hrs video)
